TRENDnet TEG-S25 24-Port Gigabit Switch

High performance with ease! The TRENDnet 24-Port Gigabit Switch boosts office network efficiency and eliminates network congestion with gigabit speeds and a total switching capacity of 48Gbps. Designed with a universal power supply to reduce cable clutter, and diagnostic LEDs for troubleshooting, this plug-and-play device offers reliable high-speed connectivity.

Features

This gigabit switch boasts sturdy metal housing and included rackmount brackets perfect for 19:1U installations. Its fan-less design lowers energy consumption and reduces noise distractions so users can focus on what’s most important.

TRENDnet

Founded in Torrance, California, TRENDnet has grown to become a leading global networking hardware brand. From the network core to the periphery, TRENDnet's expansive product portfolio includes Wireless, Wired, Surveillance, Connectivity, and Peripheral device categories. An emphasis on continual improvement and our ISO9001:2015 quality management certification is an essential component of TRENDnet’s success. The TRENDnet brand is consistently recognized for exceptional quality, superior performance, and responsive support.

View Information Sheet

View Tech Drawing

Standards:	IEEE 802.3 / IEEE 802.3u / IEEE 802.3x / IEEE 802.3ab
Device Interface:	24x Gigabit ports / LED indicators
Data Transfer Rate:	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) / Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) / Gigabit: 2000Mbps (full duplex)
Performance:	Switching Capacity: 48Gbps / RAM Buffer: 512KB / MAC Address Table: 8K entries / Forwarding Rate: 35.71Mpps (64-byte packet size) / Jumbo Frames: 9KB
Special Features:	Rack Mountable

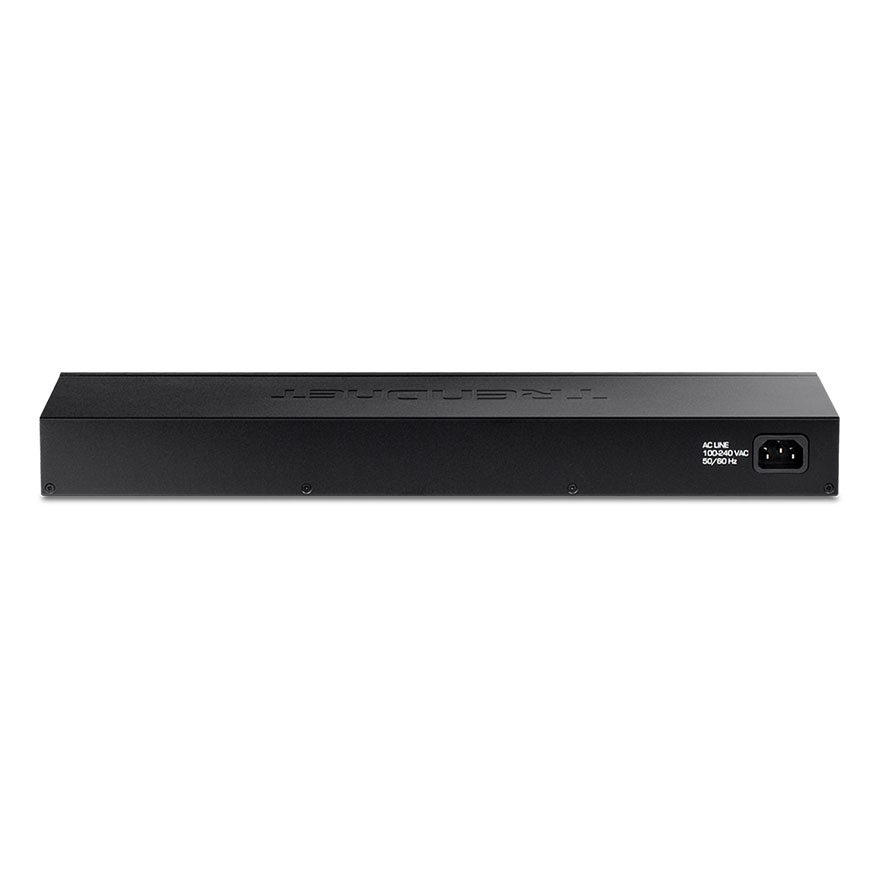

Power:	Internal power supply: 100 – 240V AC, 50/60 Hz, 1A / Max. Consumption: 14.24W
Fan/Acoustics:	Fanless design
MTBF:	364,460 hours
Operating Temperature:	0° – 40° C (32° – 104° F)
Operating Humidity:	Max. 90% non-condensing
Dimensions (L x W x H):	40 x 130 x 44mm (17.32 x 5.12 x 1.73 in.)
Weight:	1.73kg (3.81 lbs.)
Certifications:	FCC / CE / ETL
Warranty:	3 year

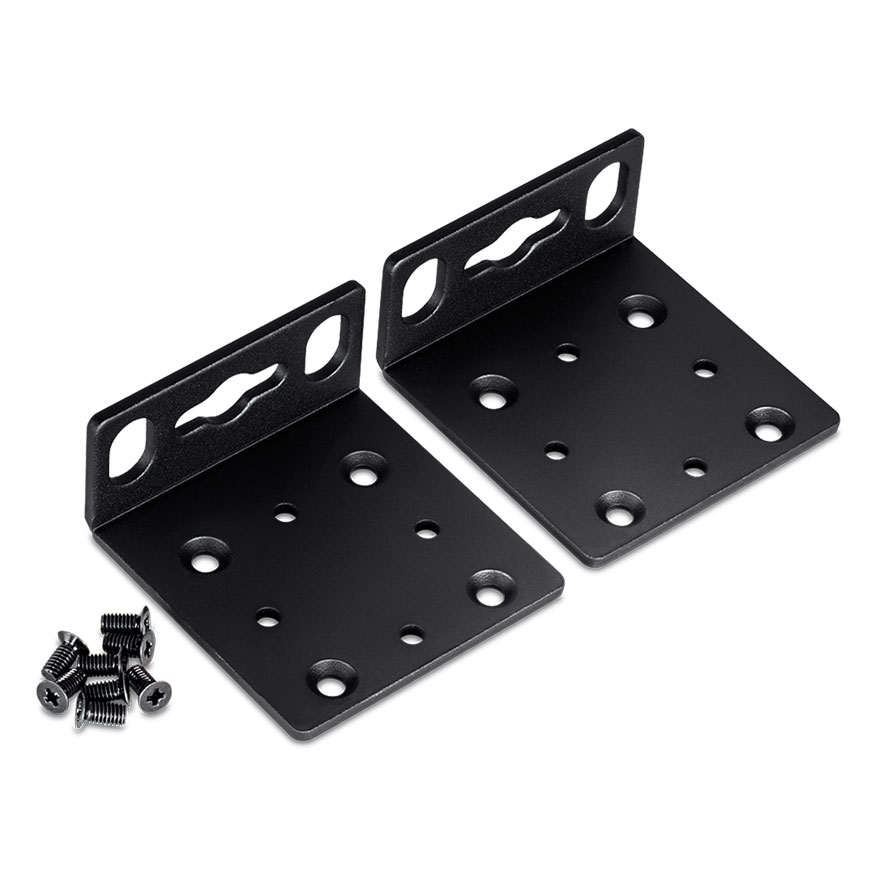

Package Contents:	TEG-S25 / Quick Installation Guide / Rack Mount Kit / Power Cord (1.5m / 4.9 ft.)
