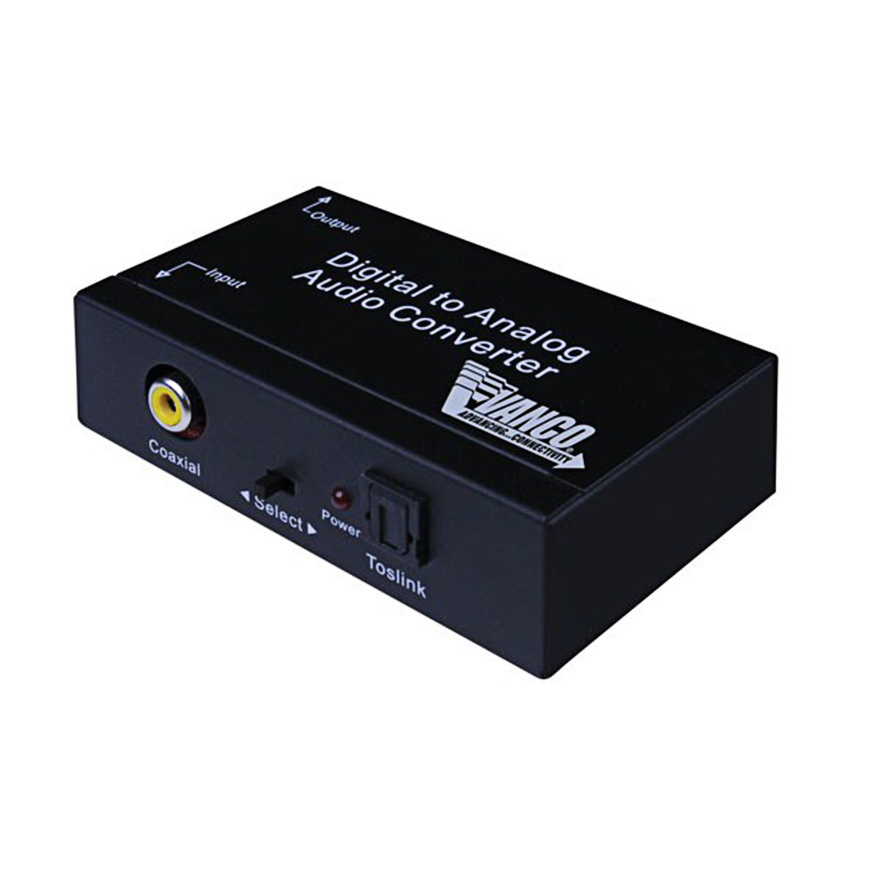

Vanco® 280515 Premium Digital to Analog Audio Converter

Install the power of conversion! The Vanco® 280515 is a Premium Digital to Analog Audio Converter that is Dolby Digital Approved and supports a full range of 32k-44k-1k-48k-64k-88.2k-96k-192k. Easy to install and simple to operate, it’s the perfect option.

Features

UL listed with a 5V DC power supply, this Digital to Analog converter provides noise-free electromagnetic transmission. It also includes a 24-bit S/PDIF incoming bit stream on left and right channels, built-in Dolby/DB HD-the DTS HD-LPCM/LPCM with decoding.

Uses

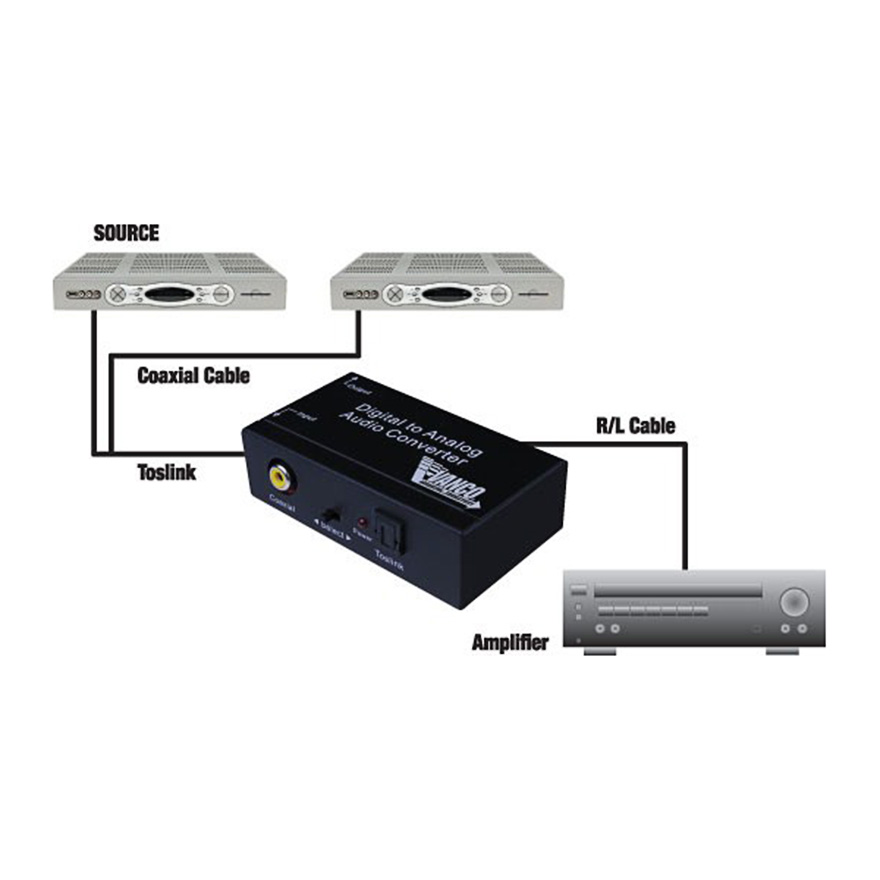

The Vanco® 280515 converts Coaxial or Toslink digital audio signals to analog L/R/ audio with ease. Just select the toggle switch to choose Coaxial or Toslink as the input where needed.

Vanco® – Performance, Quality, Reliability

Vanco International, a leader in AV Distribution, is a primary developer and manufacturer with more than 50 years of experience in the Electronics Accessories Industry. With years of experience, Vanco designs and sources electronic accessory products that address ever emerging new markets. Vanco is committed to providing leading edge electronic accessories that advance connectivity and embrace the digital information evolution.

View User Manual

Input Audio	Coaxial or Toslink Digital Audio
Output Audio	L/R. Audio
Input Audio Connector	Toslink 1XRCA (Coaxial)
Output Audio Connector	2XRCA (R/L)
Sampling Rate	32, 44, 1, 48, and 96 KHz
Size(L x W x H)	3.25” x 93.5” x 1.87”
Weight (Net)	78 g
Limited Warranty	1 Year Parts and Labor
Operating Temperature	0ºC to +70º C
Operating Humidity	10% to 85% RH (no condensation)
Storage Temperature	-10ºC to +80ºC
Storage Humidity	5% to 90% RH (no condensation)
External Power Supply	5V DC@2A
Power Consumption	0.5 watts (max)
Converter Unit	FCC, CE, UL
Power Supply	UL, CE, FCC
AC Power Adapter	US Standard
