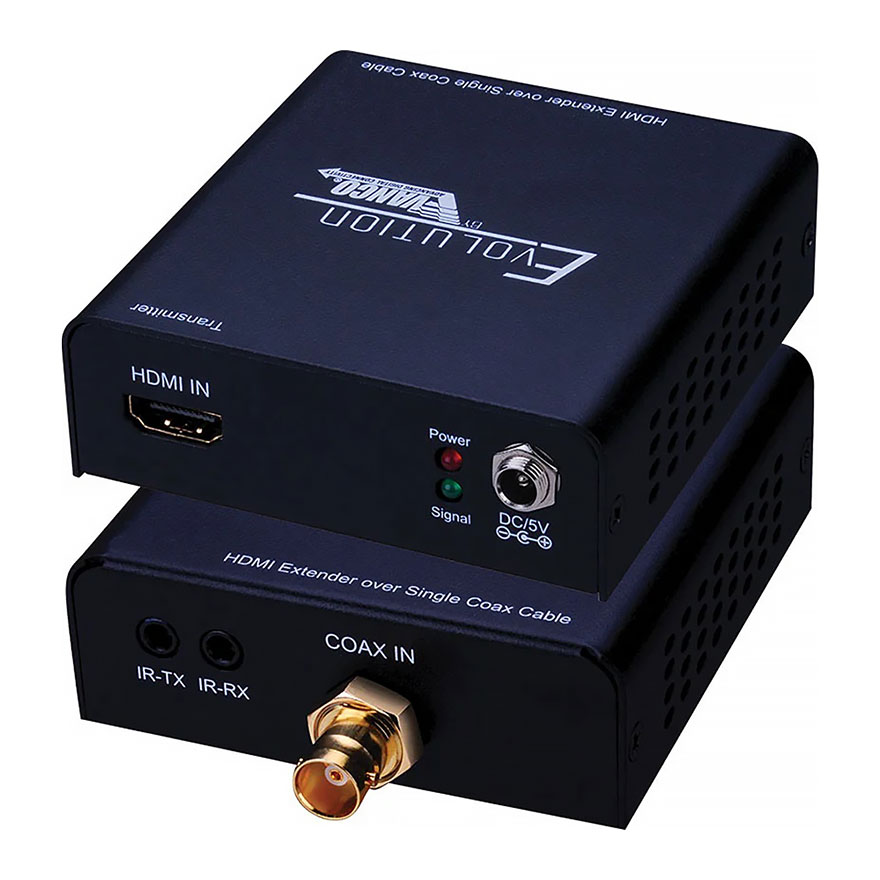

Vanco® EVE2004 Evolution HDMI® Over Single Coax Extender

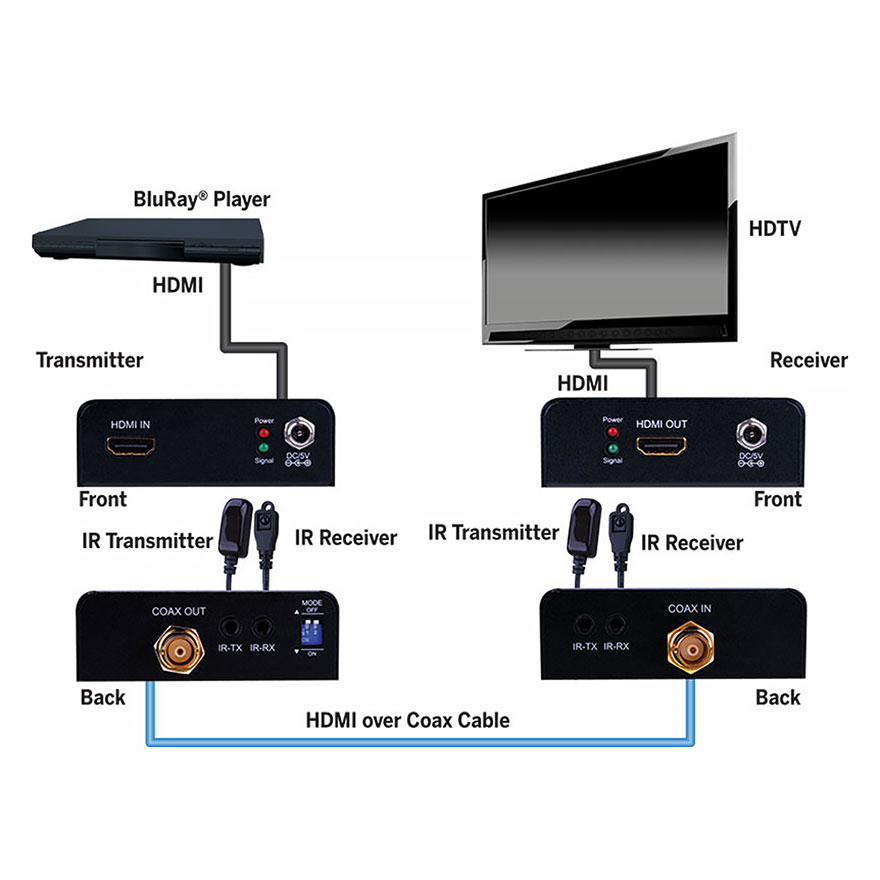

Transmit analog audio signals with a single cable! The Vanco® Cable Extender works with HDMI and HDCP devices, has a wide band Bi-Directional IR system, and transmits up to 120 meters.

Features

This Extender supports up to 1080p/60 High Definition resolution and 480i- 576i- 720p- 1080i- and 1080p video resolutions. DTS-HD and Dolby TrueHD high bit rate audio are supported. Best of all, it is house in a compact design and can easily be wall mounted.

Vanco® – Performance, Quality, Reliability

Vanco International, a leader in AV Distribution, is a primary developer and manufacturer with more than 50 years of experience in the Electronics Accessories Industry. With years of experience, Vanco designs and sources electronic accessory products that address ever emerging new markets. Vanco is committed to providing leading edge electronic accessories that advance connectivity and embrace the digital information evolution.

View User Manual

HDCP Compliance:	Yes
Video Bandwidth:	Single-link 225MHz [6.75Gbps]
Video Support:	480i / 720p / 1080i / 1080p60 (Does NOT support480p)
Audio Support:	Surround Sound (up to 7.1 ch) or stereo digital audio
Transmission Range:	HD [1080p 24-bit color] – up to 120m [394ft]
HDMI Equalization:	Auto
Input TMDS Signal:	1.2 Volts (peak to peak)
Input DDC Signal:	5 Volts (peak to peak, TTL)
ESD Protection:	(1) Human body model +/- 19kV (air-gap discharge) &(contact discharge) (2) Core chipset - +/- 8k V
PCB Stack-Up:	6 layer board (impedance control - differential 100Ω,single 50Ω

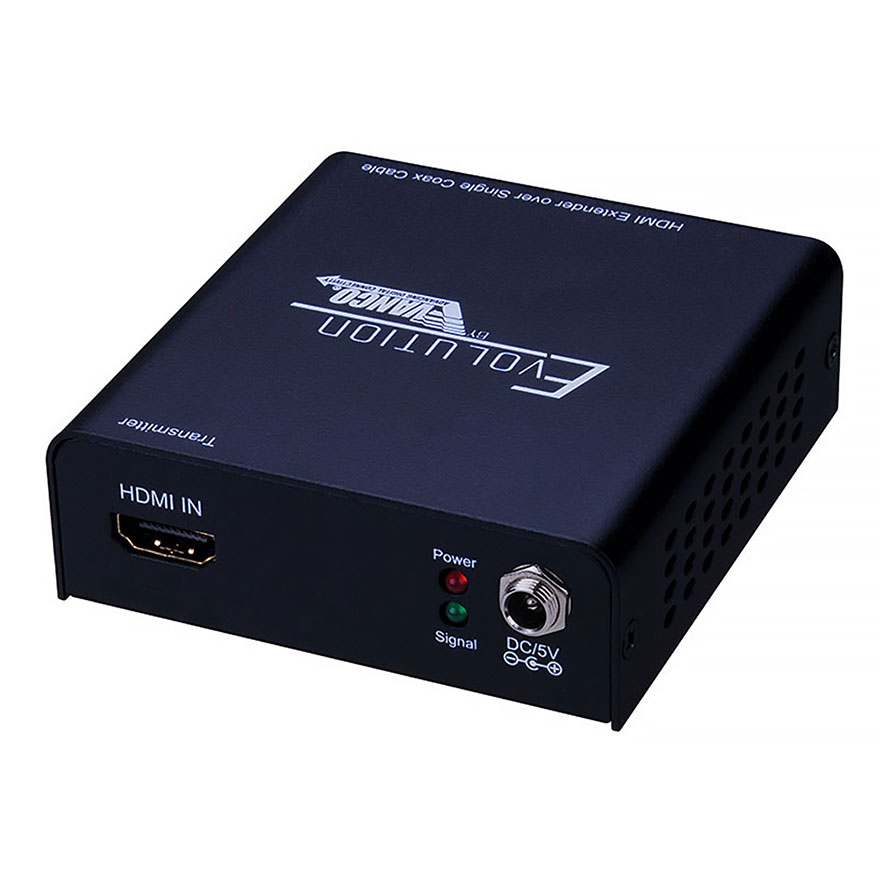

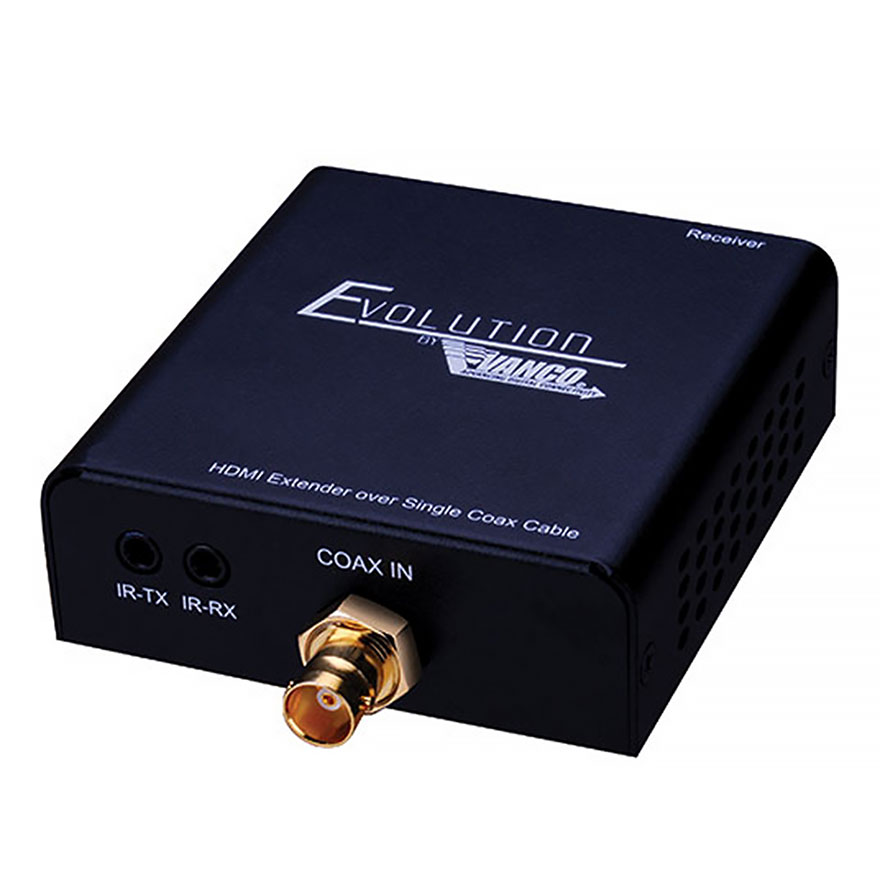

Input:	(TX) 1xHDMI + 1x3.5mm; (RX) 1xBNC + 1x3.5mm

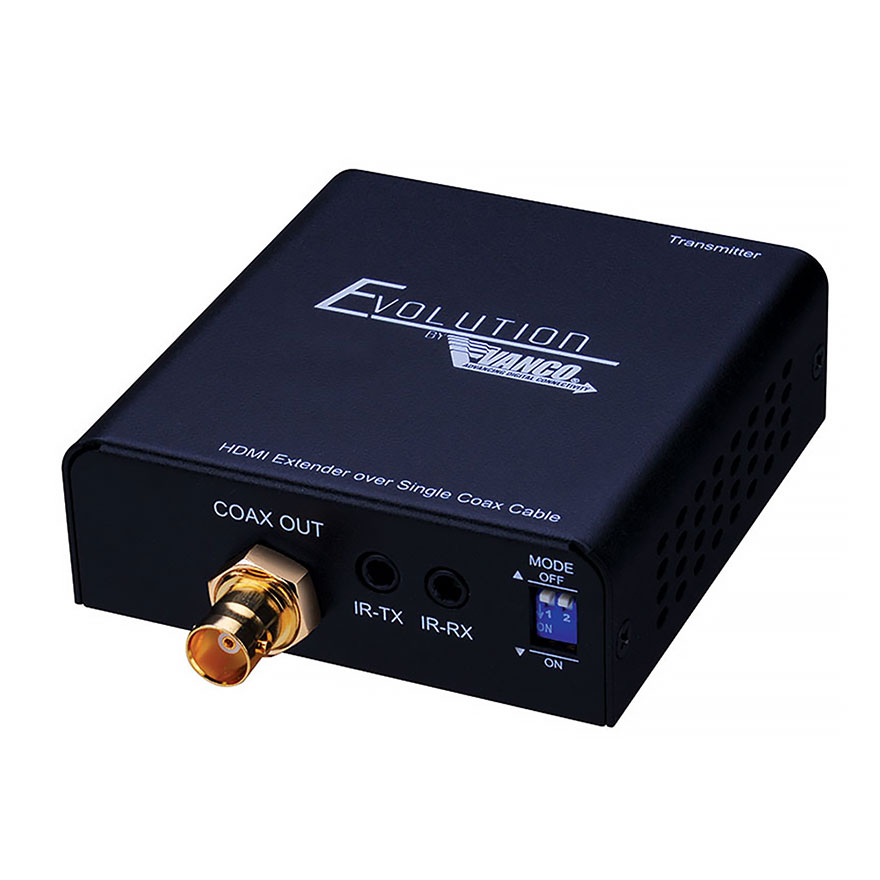

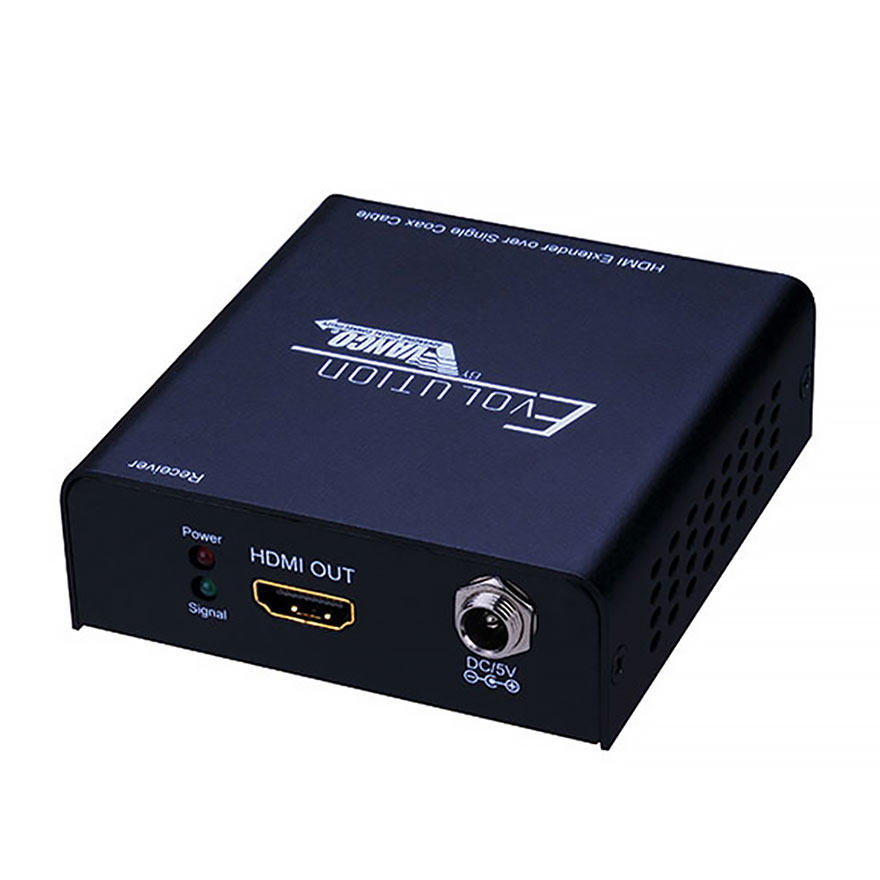

Output:	(TX) 1xBNC + 1x3.5mm; (RX) 1xHDMI + 1x3.5mm
IR Remote Control:	Electro-optical characteristics: p = 25° / Carrier
Frequency:	20-60kHz
HDMI Connector:	Type A 19 pin female
BNC Connector:	75Ω interlocking socket
3.5mm Connector:	(TX and RX) IR Receiver/ IR blaster
Housing:	Metal enclosure
Fixedness:	Wall-mounting case with screws
Power Supply:	(2) 5V2A
Power Consumption:	6 Watts
Operation Temperature:	32-104 degrees F
Storage Temperature:	-4 - 140 degrees F
Relative Humidity:	20-90% RH (no condensation)
