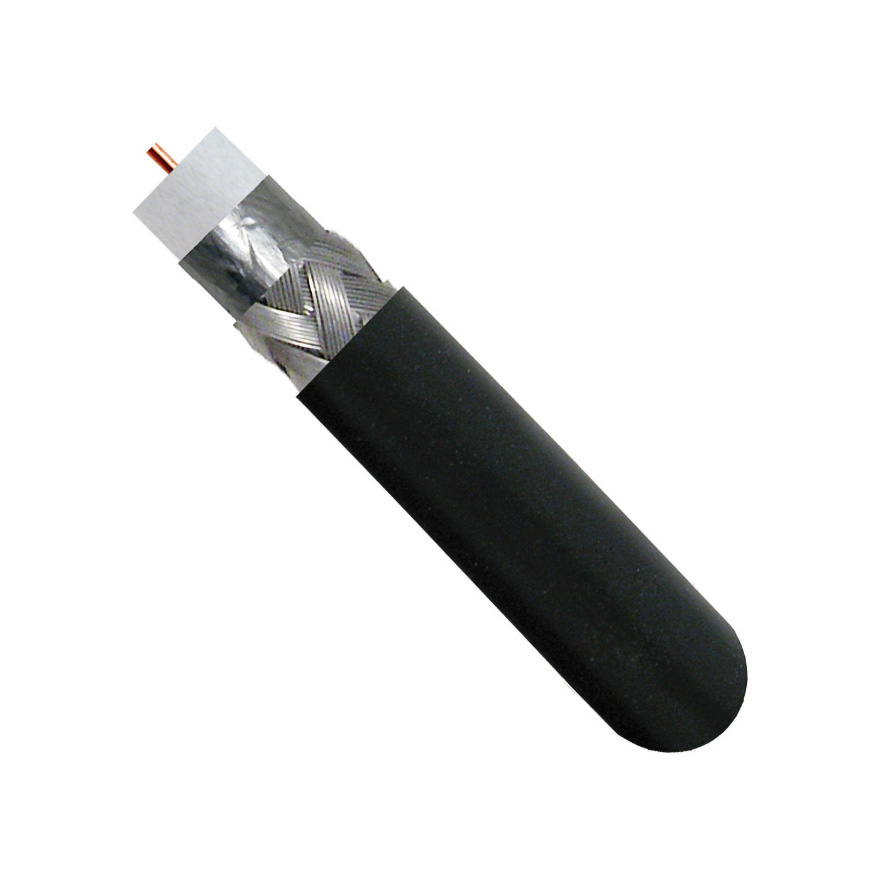

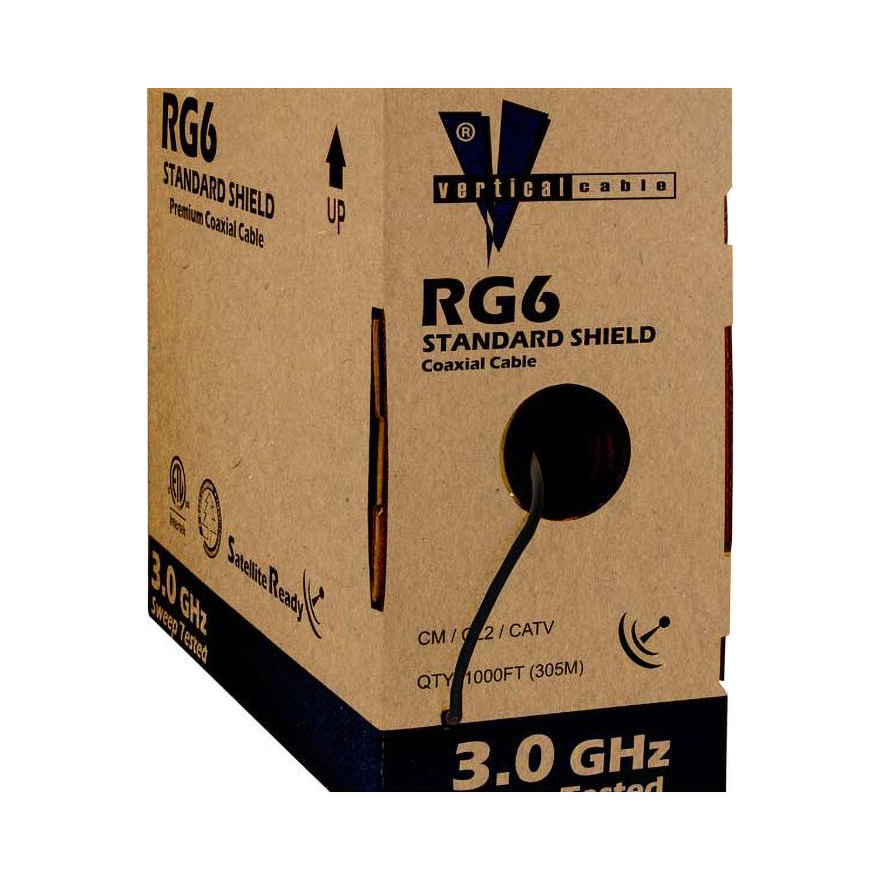

Vertical Cable 107-2311/BK RG-6 Standard Shield 18 AWG Bare Copper Conductor Coax Cable Pull Box (1,000 ft / Black)

Make the right connection! The Vertical Cable 107-2311/BK is a high grade RG6U 3.0 GHz RG-6 Standard Shield Coax Cable with 18 AWG Bare Copper Conductor in a convenient Pull Box of 1,000 feet. It is perfect for digital HDTV applications, CATV, and Digital Satellite installations.

Features

This Cable is fully sweep-tested to 3000MHz and aluminum/PET-foil bonded. Complete with a 60% braid shield, it is also CM rated, ETL listed, and RoHS compliant.

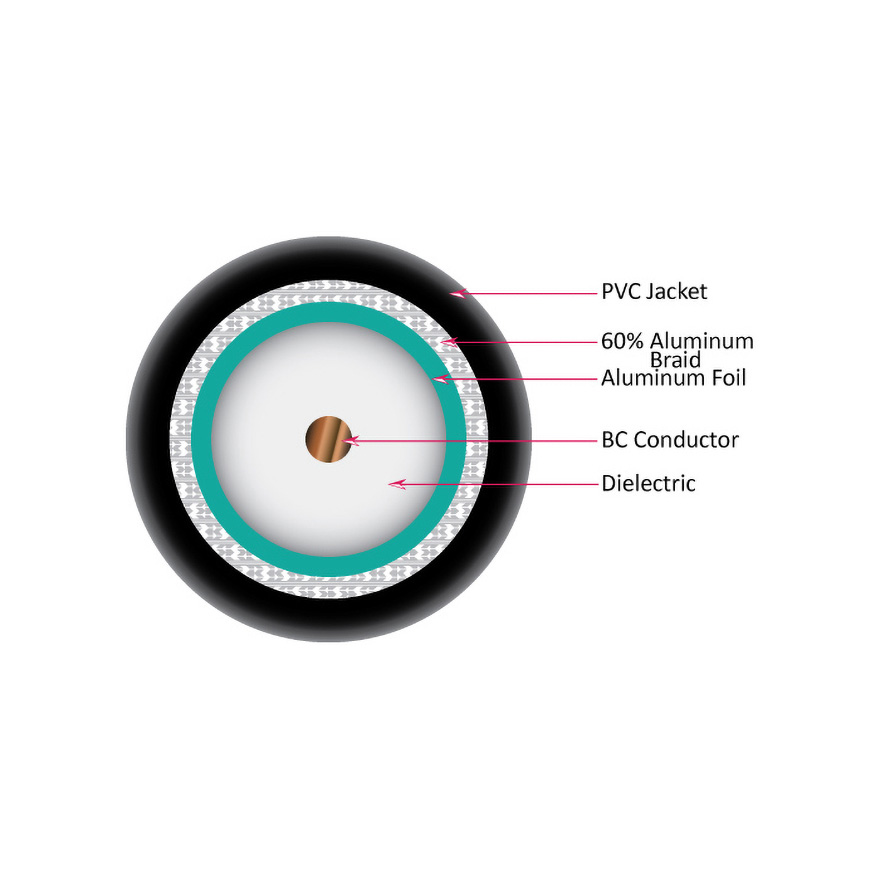

Inter Conductor

Conductor Material:	Bare Copper (Solid)
Size:	18 AWG
Construction:	1.02±0.10 mm

Insulation

Material:	Foamed PE
Diameter:	4.6±0.1 mm
Min. Thickness:	1.52 mm
Color:	White

First Shield Outer Conductor

Material:

Aluminum/PET-Foil Bonded

Second Shield Outer Conductor

Material:	Aluminum Wire
Size:	0.12 mm
Construction:	0.12x5x16 (60%)

Jacket

Material:	PVC
Diameter:	6.86±0.15 mm
Min. Thickness	0.76 mm
Color:	Black

Electrical Specifications (20⁰)

Center Conductor DC Resistance:	≤120Ω/km
Nominal Capacitance:	52±2pF/m
Impedance:	75±3 Ohms

Attenuation (@68⁰ F. / 20⁰ C.)

Frequency (MHz)	Max. (dB/100 ft)	Frequency (MHz)	Max. (dB/100 ft)
5	0.58	550	4.90
55	1.60	600	5.10
83	1.95	750	5.65
187	2.85	865	6.10
211	3.05	1000	6.55
250	3.30	1450	7.98
300	3.55	1800	8.46
350	3.85	2100	9.50
400	4.15	2250	10.00
450	4.40	3000	11.40
500	4.66
