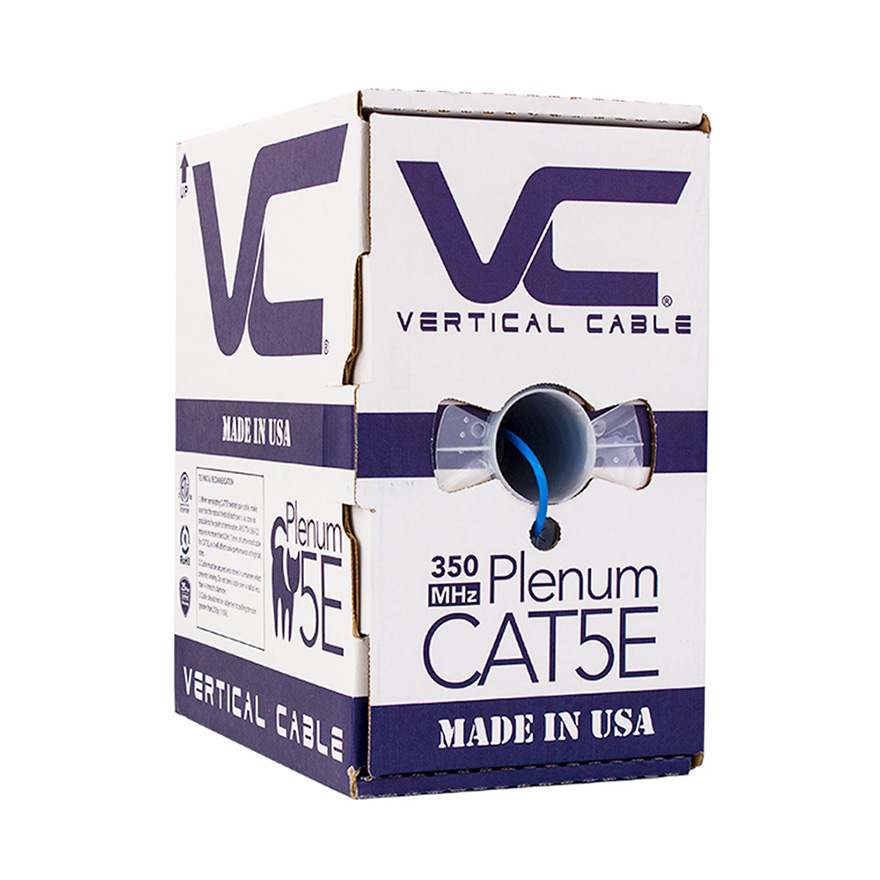

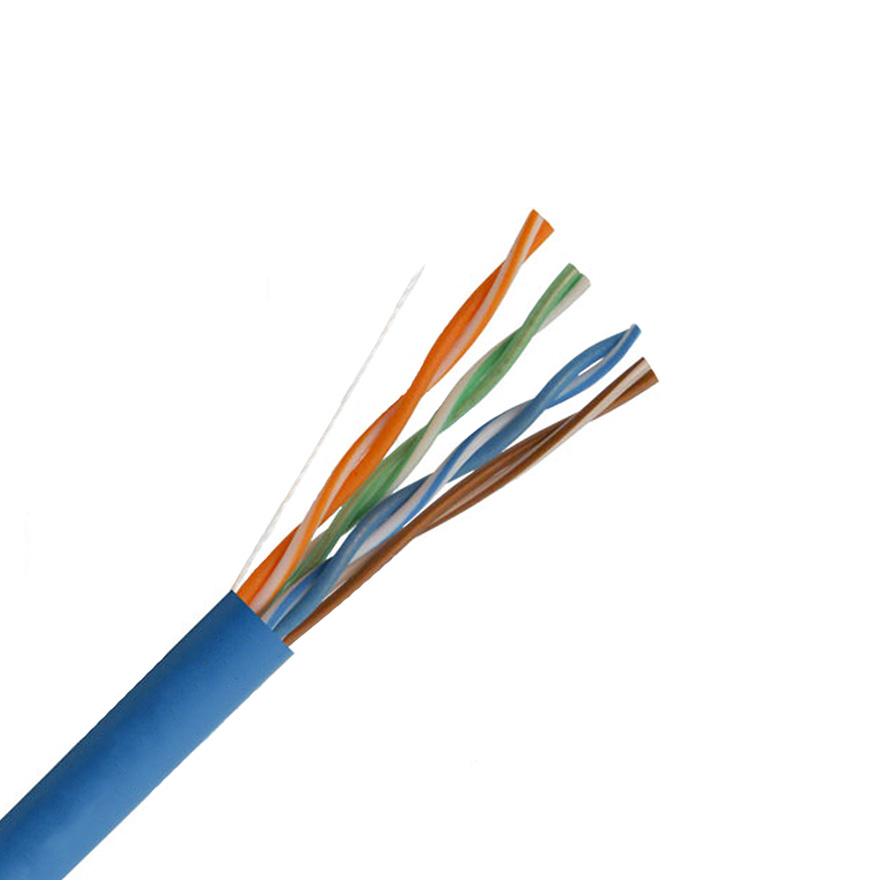

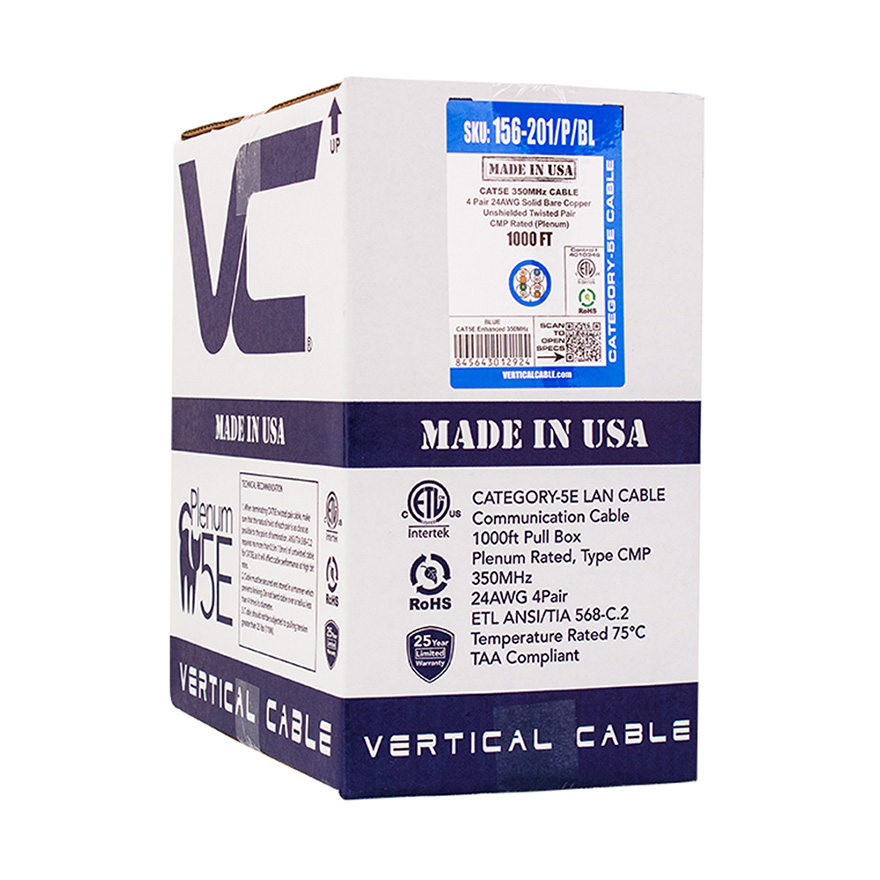

Vertical Cable 156-201/P/BL Cat5e Plenum 24 AWG UTP 4-Pair Solid Bare Copper Data Cable (Blue | 1,000ft | Pull Box)

Install high-performance with the Vertical Cable Cat6 Data Cable! With 550 MHz, 24 AWG solid bare copper conductors, color identified pairs, this 1,000 foot pull box is a bargain.

Features

This data cable is suitable for high-speed data applications, fast Ethernet, and 155 Mbps TP-PMD/CDDI. It’s also flame retardant, exceeds TIA/EIA 568-C.2 specifications and is ETL Listed and RoHS Compliant. Best of all it’s made in the USA and the box labels are conveniently color-coded.

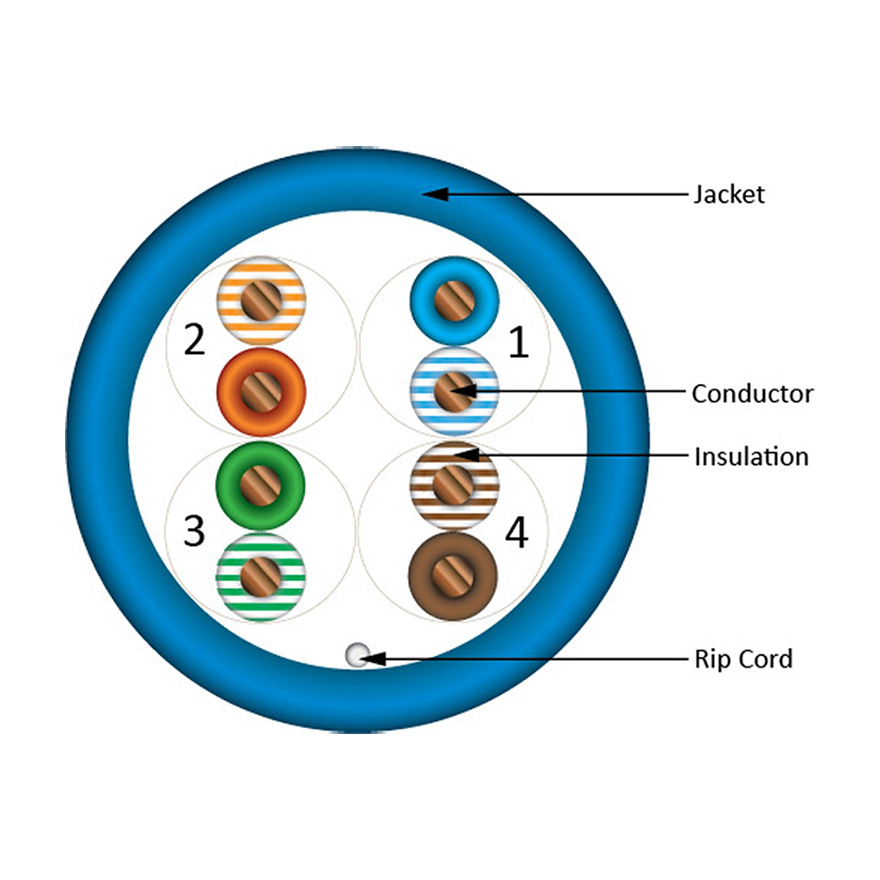

NVP:	72%
Conductor:	24AWG Solid Bare Copper
Number:	8 (4 Pair)
Insulation:	FEP
Thickness:	0.0075" (0.190 mm)
Color of Pairs:	Pair 1 Blue, White-Blue / Pair 2 Orange, White-Orange / Pair 3 Green, White-Green / Pair 4 Brown, White-Brown
Jacket:	FR-PVC
Outer Diameter:	0.185" Nom. (4.70 mm)
Rip Cord:	Yes
Jacket Print:	VERTICAL CABLE 4010346 CAT5E CMP 24 AWG 4PR UTP 75C TESTEDTO 350 MHz c(ETL)us VERIFIED TO TIA-568C.2 MADE INUSAROHS COMPLIANT XXXXFT
Compliance:	c(ETL)us, TIA/EIA568-C.2
Operating Temperature:	-20°C to 75°C
Operating Voltage Rating:	(V RMS) 300
DC Resistance Per Conductor:	@20°C (Ω/100m) 9.38
Mutual Capacitance (nF/100m Max):	5.6
Resistance Unbalance Max (%):	5
Capacitance Unbalance Max (pF/100m):	330
Nominal Impedance (±15%)(Ω):	100
Weight:	21
Max Recommended Pull Tension (lb):	25
Min Bend Radius (in):	0.75
Applications:	ANSI X3T9.5 TP-PMD (FDDI), ATM PMD 155 Mbps IEEE 802.3 Fast Ethernet :10 Base-T, 100 Base-T4, 100 Base-X IEEE 802.5 :4/16 Mbps Token Ring, IEEE 802.12 :100 Base-VG
Jacket Color:	Blue
