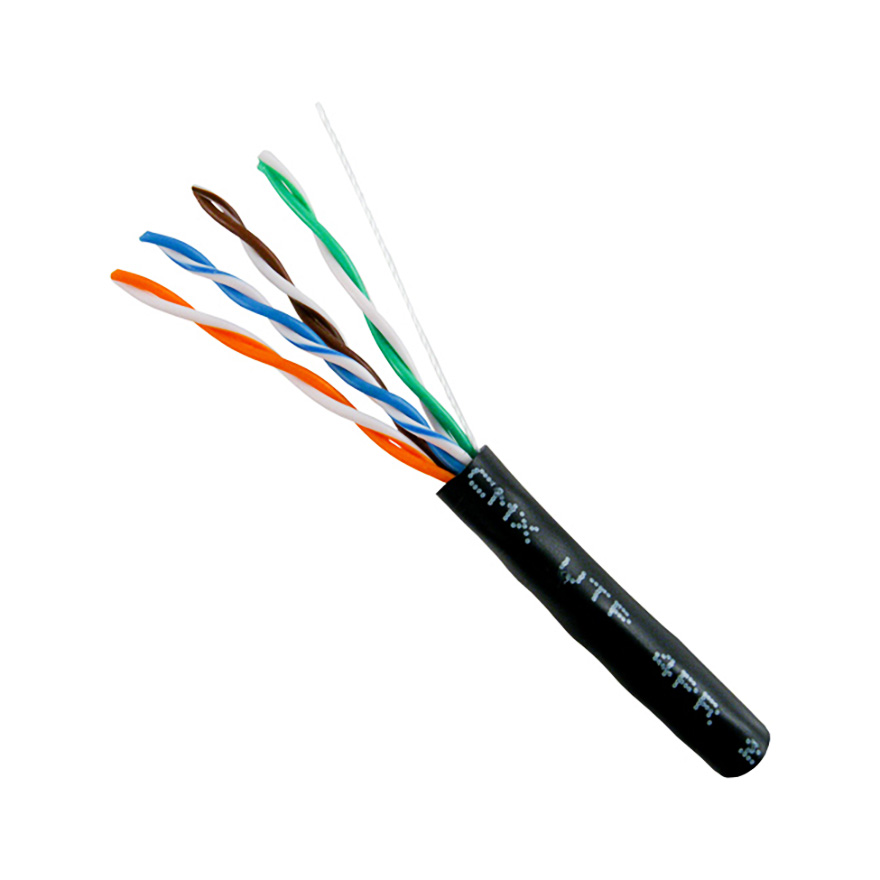

Vertical Cable 059-484/CMX UV Resistant Cat5e Category Cable (Black | 1,000 Feet)

High speed modern needs deserve high speed performance! Get the Vertical Cable 059-484/CMX to handle just about anything under the sun. Audio, video, any type of data transfer will be delivered with the weatherproof security of this Cat5e Category Cable.

Weatherproof

Vertical cable’s 059-484/CMX is constructed with a protective double jacket layer. This cable is not only storm-proof, but also UV resistant to withstand any type of harsh environment.

Effortless Install

The Vertical Cable 059-484/CMX has an easily-strippable jacket and sequential distance offering you an effortless install.

Technical Data

Rated Temperature:	-40~75°C
Rated Voltage:	60V
Product Standard Certification:	CMX
Reference Standard:	TIA/EIA 568 & ISO/IEC 11801

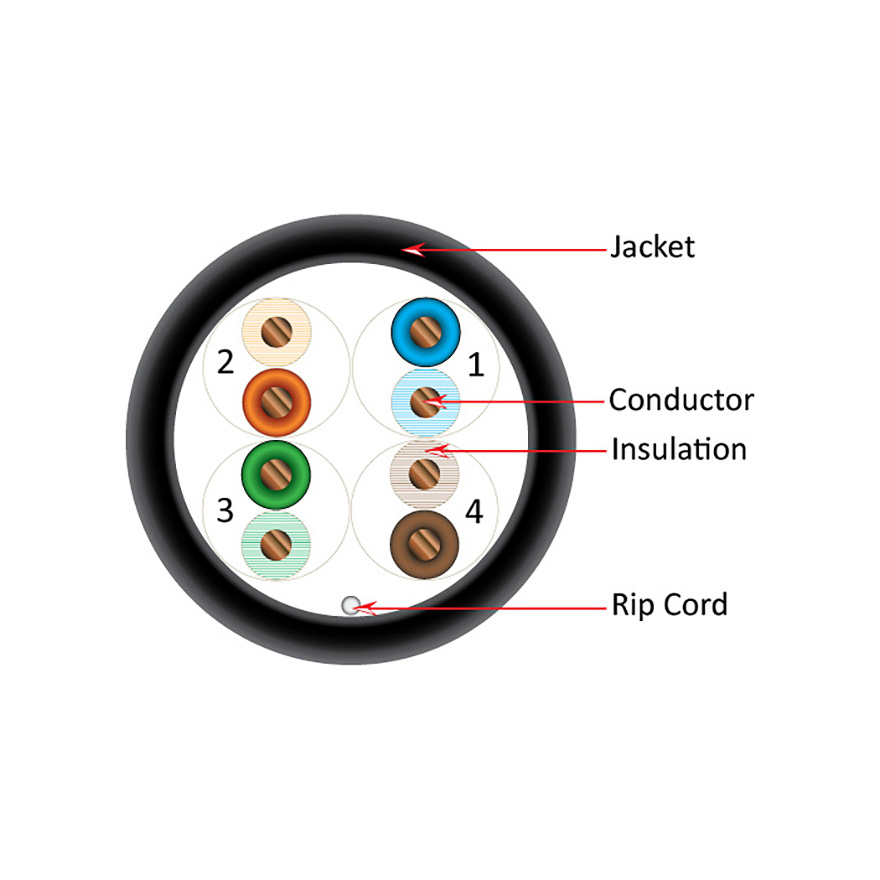

Conductor

Size:

24 AWG

Insulation

Average Thickness (mm):	0.205
Min. Point Thickness (mm):	0.190
Insulation Diameter (±0.005mm):	0.91
Twisted Pair Diameter (±0.01):	1.82

Assembly

Diameter:

3.80

Jacket

Black:	LLDPE (UV)
Average Thickness (mm):	0.60
Min. Point Thickness (mm):	0.54
Outer Diameter (±0.10mm):	5.10
Rip Cord:	Yes

Color of Pairs

Pair 1:	Blue, White-Blue
Pair 2:	Orange, White-Orange
Pair 3:	Green, White-Green
Pair 4:	Brown, White-Brown

Mechanical Characteristics

Test Object:	Jacket
Test Material:	LLDPE
Before, Tensile Strength (Mpa):	≥13.8
Aging, Elongation (%):	≥100
Aging Condition (°Cxhrs):	100x168
After, Tensile Strength (Mpa):	≥85% of unaged
Aging, Elongation (%):	≥50% of unaged
Cold Bend (-40±2°Cx4hrs):	No Crack

Markings

On Jacket:

VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 24 AWG OUTDOOR UV (SEGUENTIAL FOOT MARKERS ON JACKET)
