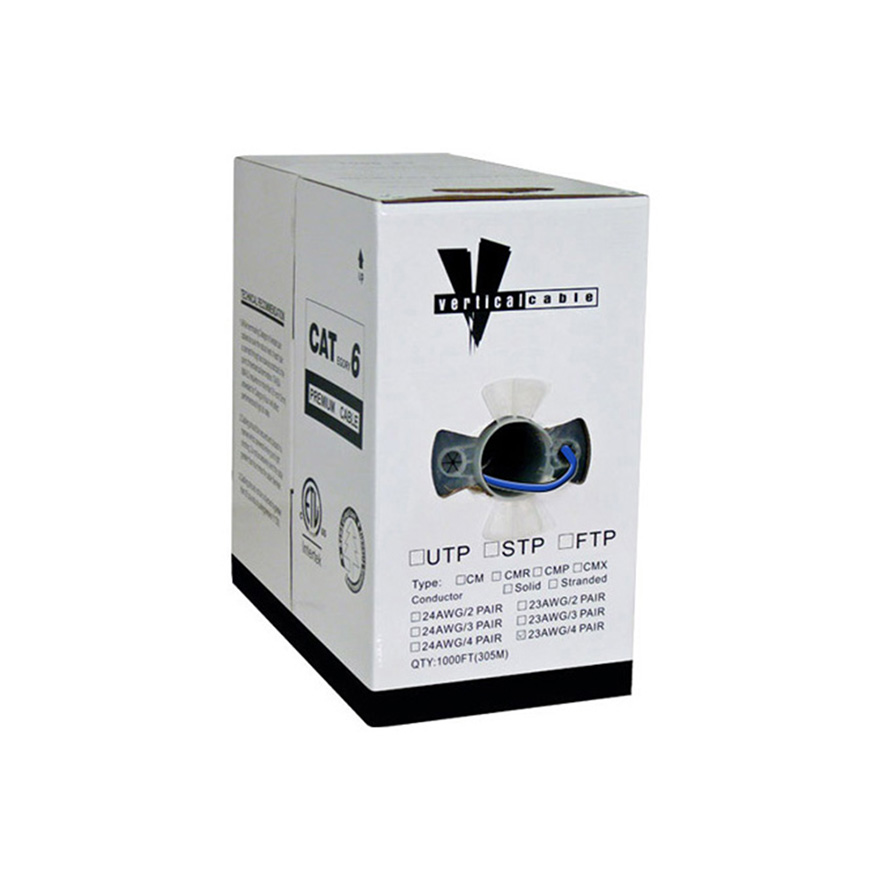

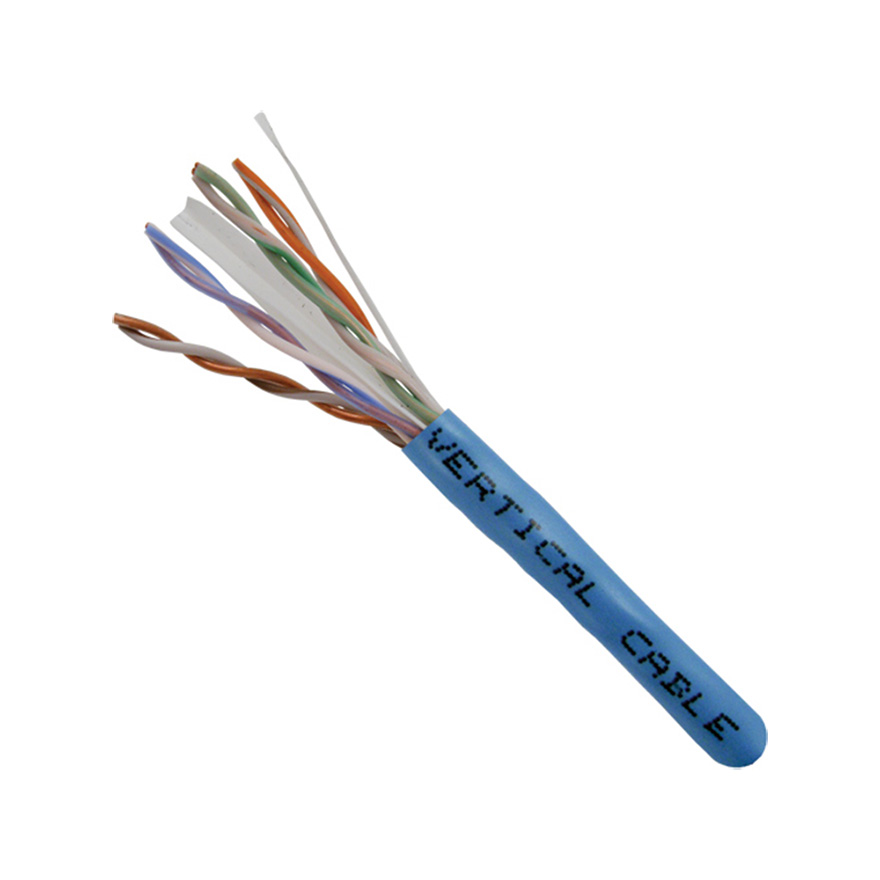

Vertical Cable 161-102/BL 550MHz Cat6 8-Conductor Cable (1000ft / Blue)

Deliver power with ease! The Vertical Cable 161-102/BL Cat6 550MHz 8-Conductor Cable is up for just about anything. From audio, video, or any type of data transfers, this cable is ready for the task.

Complete Clarity

Guaranteed to last, the Vertical Cable 161-102/BL is designed to ensure signal integrity. It is specifically crafted to provide unrivaled audio and video clarity.

Effortless Install

This cable has an easily strippable jacket and sequential distance offering you an effortless install.

Product Standard Certification:	CMR
NVP:	67%

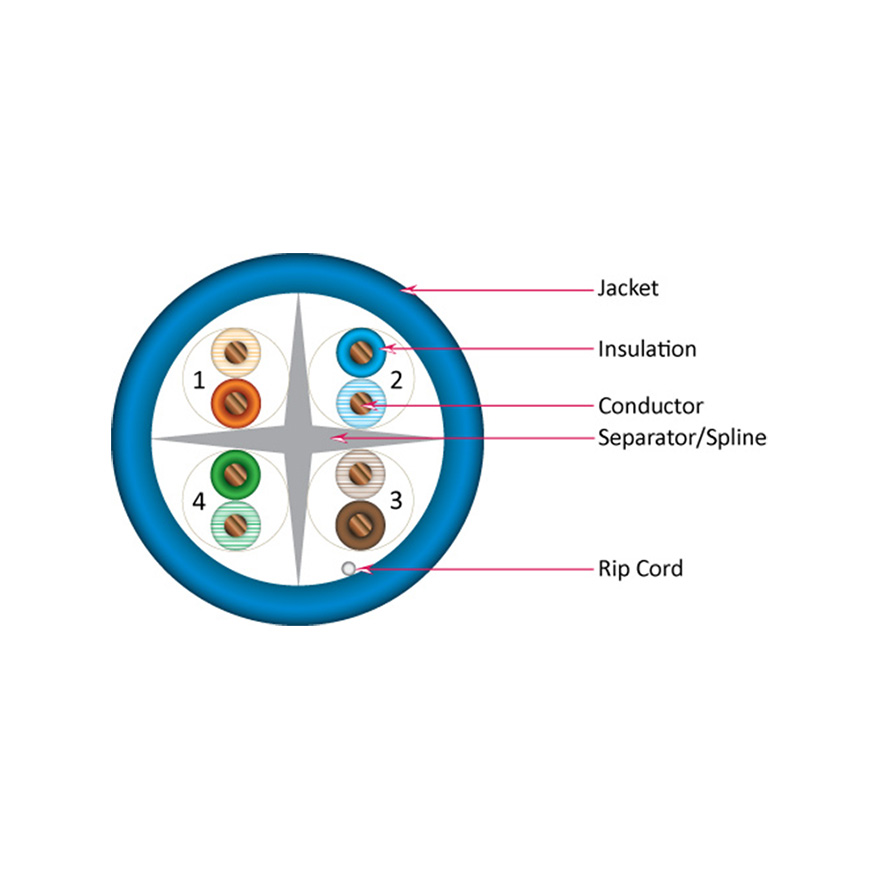

Conductor:	Solid Bare Copper
Size:	23AWG
Insulation:	PE
Separator:	Yes
Jacket:	PVC
Outer Diameter:	6.10 mm (±0.05mm)
Rip Cord:	Yes
Color of Pairs:	Pair 1-Blue, White-Blue / Pair 2-Orange, White-Orange / Pair 3-Green, White-Green / Pair 4-rown, White-Brown
Bending Radius:	4XOD (without load)
Operating Temperature:	-20ºC~75ºC
Marking on Jacket:	VERITCAL ETL VERIFIED CAT6 TO ANSI/TIA 568-C.2 ETL CMR 23 AWG 4PR 75C UTP c(ETL)us FT 4 55MHZ RoHS XXXXFT (SEQUENTIAL FOOD MARKERS ON JACKET)
DC Resistance	Max 9.38Ω / 100m at 20ºC
Resistance Unbalance	Max 5% at 20ºC
Mutual Capacitance	Max 5.6 nf / 100m at 1kHz
Cap. Unbalance to Ground	Max 330 pf / 100m at 1 kHZ
Characteristic Impedance	(100 ± 15) Ω at 1 ~ 100 MHz
Nominal Velocity of Propagation	67%
Propagation Delay	≤ 535 ns / 100m
Delay Skew	≤ 45ns / 100m
Frequency (Mhz)
