Xantech Hidden Link Universal IR Receiver (Black)

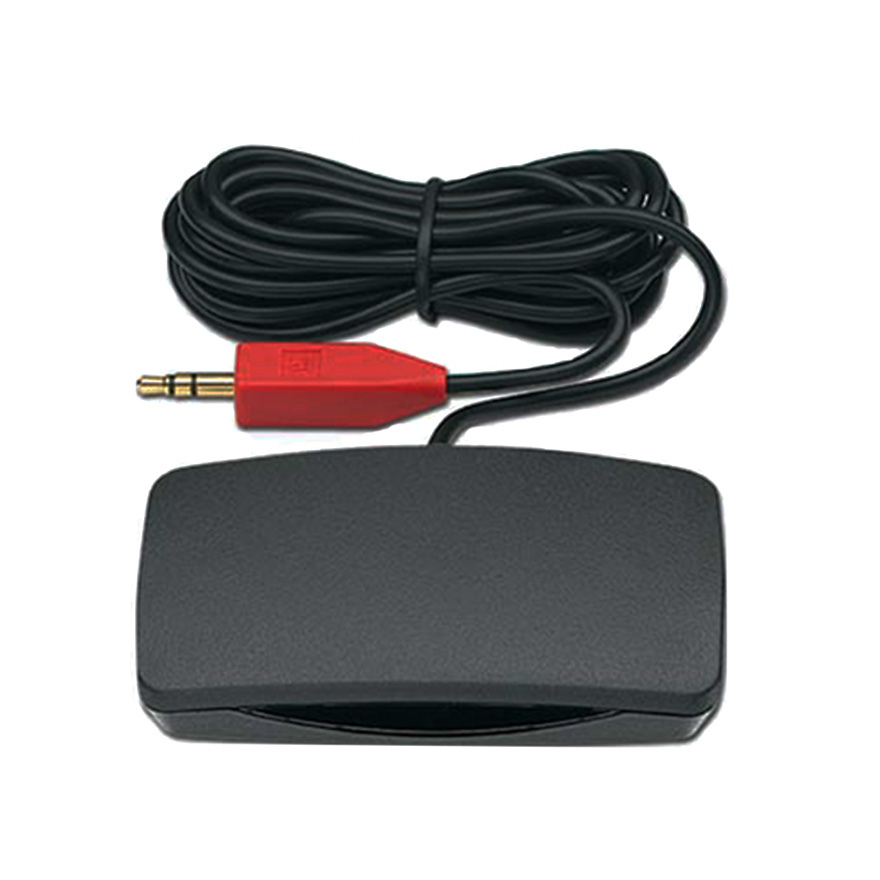

The HL95B Hidden Link IR Receiver is a small shelf-top infrared repeater assembly. It includes an IR receiver and a CB12 Connecting Block. The Hidden Link IR Receiver is equipped with a 7-foot cable and a 3.5mm stereo mini plug, which is plugged directly into the “IR RCVR” jack on the CB12. It can also be plugged into the “AUX” or “IR RCVR” jack of other Xantech connecting blocks, such as the models 789-44, CB60, and 791-44.

Features

The Hidden Link IR Receiver is primarily intended for use in installations where the connecting block is within reach of its 7-foot cable – as when installing the Hidden Link IR Receiver in a cabinet where the controlled equipment is behind closed doors.

Dimensions: 2.00" x 3.15" x 0.70"
Power requirements: +12VDC, 20m
Color: Black
Maximum current output: 100mA
Max. transmission length: 1 mile using 18 gauge wire
Nominal reception angle: 55 degrees off axis
Reception range: Up to 120 feet, depending on remote control output strength and ambient conditions
Infrared carrier frequency bandwidth: 25 – 60 kHz
Includes: CB12 Connecting Block for easy system installation
Drives IR emitters: through Xantech Connecting Blocks, Controllers, etc.
System Testing: red-talk-back LED
