Xantech ML95 Micro Link Universal IR Receiver

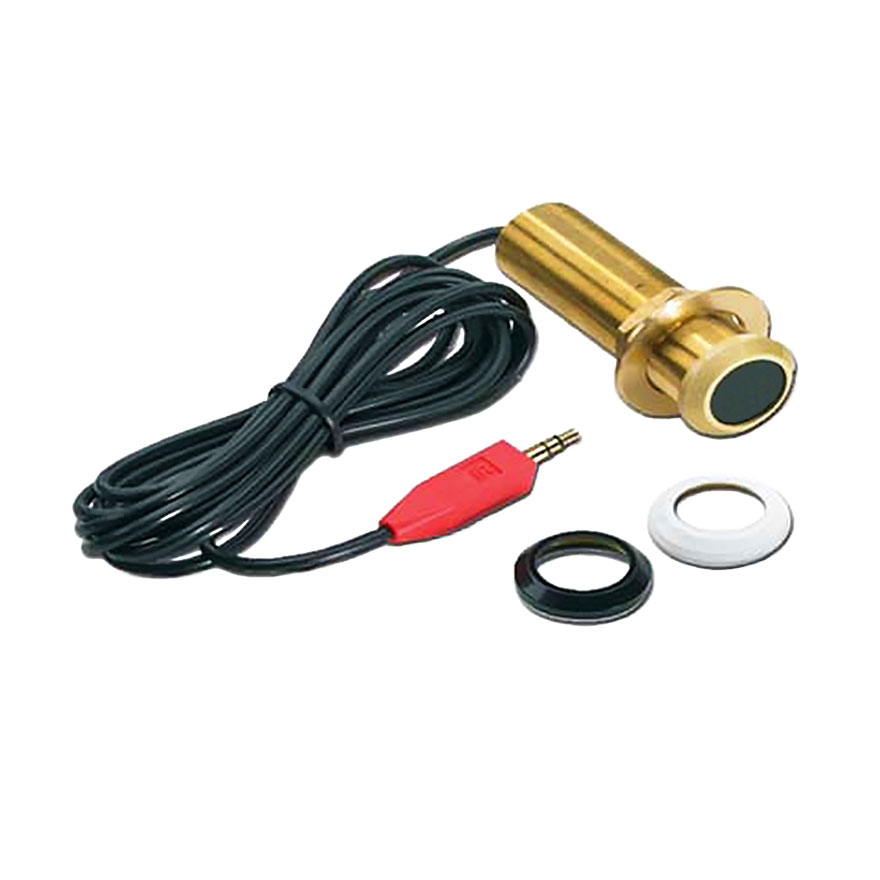

The ML95 Micro Link Universal IR Receiver is a small peep-hole style infrared repeater assembly. The Micro Link IR Receiver is equipped with a 7ft cable and a 3.5mm stereo mini plug, which is plugged directly into the “IR RCVR” jack on the connecting block, such as the models 789-44, CB60, and 791- 44. The Micro Link IR Receiver is primarily intended for use in installations where the connecting block is within reach of its 7ft cable – as when installing the Micro Link IR Receiver in a cabinet where the controlled equipment is behind closed doors.

Dimensions:	0.7" diameter x 2.2" deep
Power requirements:	+12VDC, 20mA
Maximum current output:	100mA
Max. transmission length:	1 mile using 18 gauge wire
Cable requirements:	3-conductor. Use 24 gauge up to 200ft, 22 gauge up to 600ft, 20 gauge up to 2000ft, 18 gauge up to 5000ft – unshielded OK
Reception angle:	55 degrees off axis for 50% range reduction
IR reception range:	Up to 120 feet, depending on remote control output strength and ambient conditions
Infrared modulation frequency bandwidth:	25 – 60 kHz
Drives IR emitters:	through Xantech Connecting Blocks, Controllers, etc.
Small Size:	mounts in 1/2in diameter hole, 2in deep.
Works in:	normal 3-wire mode (12VDC, IR, GND).
