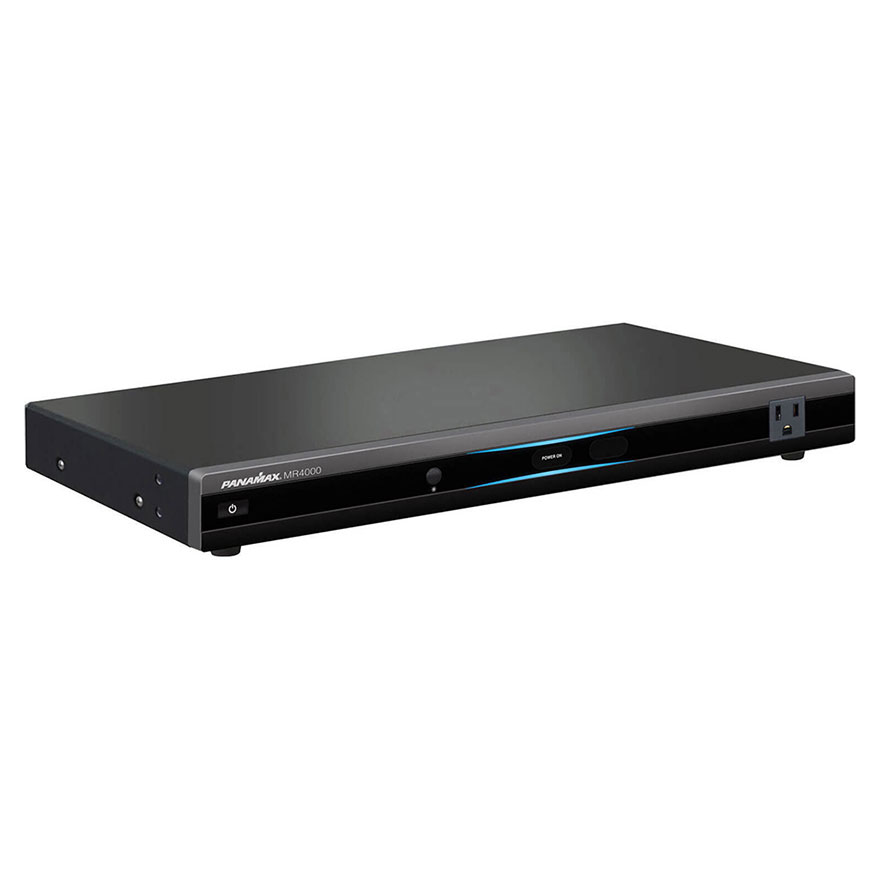

PAN1052 - Panamax® MR4000 Home Theater Power Management System
Item: PAN1052 | Model: MR4000

Brand: Panamax    Last Ordered:

  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555


Panamax® MR4000 Home Theater Power Management System

Keep your home theater equipment in tip-top shape with this power manager from Panamax®. This device gives you several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In addition, this device provides protection to your coaxial and LAN connected equipment.

Clean Power, Optimum Performance

Panamax’s patent pending AVM™ (Automatic Voltage Monitoring) circuitry continuously monitors the incoming power as displayed on the digital voltmeter. In case of an undervoltage or an overvoltage, a flashing lightning bolt will be displayed in red in the voltmeter, and power to the connected equipment is automatically turned off if either of these conditions is detected. When voltage returns to a safe level, power to the equipment is automatically reconnected.

Protect or Disconnect™

The other layer of surge protection Panamax offers you is their exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, this power manager permanently disconnects AC power from your equipment.

No Interruptions

Protecting your complete system may sometimes require that signal wires coming out of the wall be protected as well. This unit has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

LiFT

Panamax's exclusive LiFT (Linear Filtration Technology) filters noise evenly across the entire frequency band, removing the harmonic noise that can keep high-performance equipment from performing at its peak.

Family: MR Series
Line Voltage: 120 (Volts)
BlueBOLT Enabled: No
Power Factor Technology: No
Number of Outlets: 8
Number of Isolated Banks: 0
Outlet Descriptions:

1 (filtered outlet, front panel)

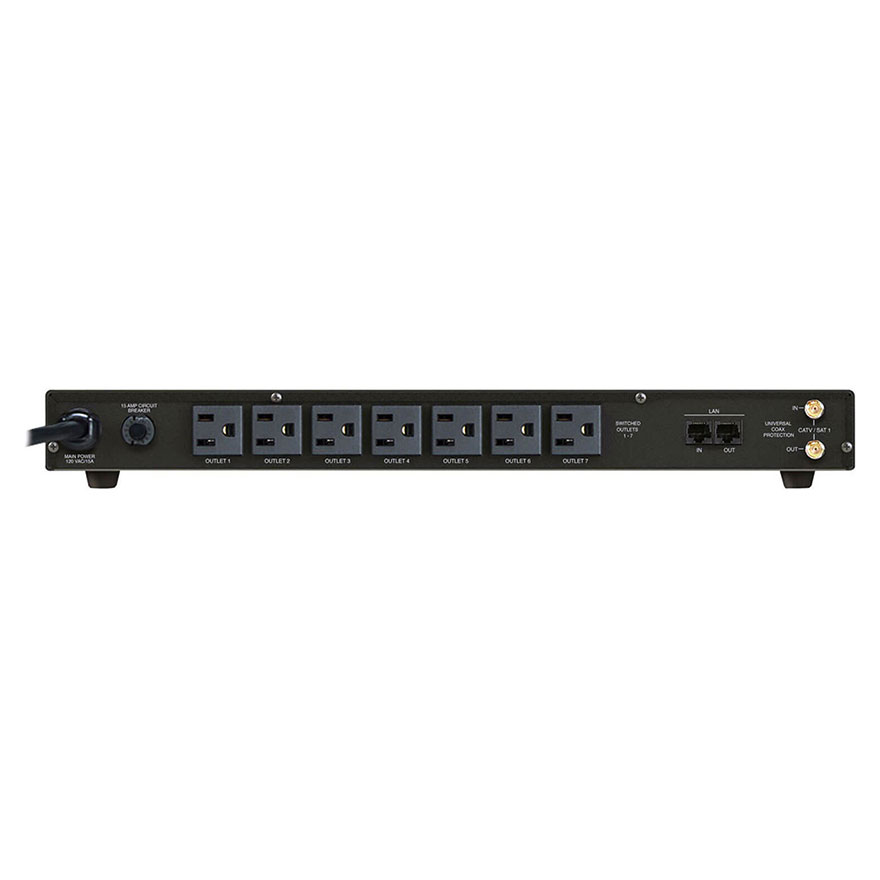

7 (filtered outlets, rear panel)

Rack Mountable:

Yes

Rack Ears Included:

Yes

Front Panel Meter(s):

No

Front Media Light(s):

No

Control:

On/Off control to all outlets through front panel power button.

Voltage Regulation:

No

Compliance:

cCSAus

USB Charging:

N/A

Low Voltage Trigger:

N/A

Weight:

6.5 lbs

AC Protection Technology:

Protect or DisconnectAutomatic Voltage MonitoringL-N, L-G, N-G Protection ModesThermal Fusing

Automatic Voltage Shutoff:

Yes

Under-Voltage Shutoff:

95V ± 2V

Over-Voltage Shutoff:

140V ±4V

Maximum Current Rating:

15 (Amps)

Initial Clamping Level:

200V Peak

Filtration Technology:

RFI/EMI Filtration

Filtration Rating:

All Outlets:

-30dB min. @ 100kHz

-55dB min. @ 250kHz

-45dB min. @ 500kHz

Max filtration: -60dB @ 300kHz

Signal Line Protection:

1 LAN, 1 Cable/Satellite

Length:

19.6 (Inches)

Width:

12.1 (Inches)

Height:

4.9 (Inches)

Weight:

6.7 (Lbs)

Unit of Measure:

Each

UPC:

050616008921

Master Pack Qty:

4

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A):

400V

Single Pulse Energy Dissipation:

1350 Joules

Response Time:

< 1ns

Peak Impulse Current:

52,000 Amps

LAN - Wires Protected:

8-Wires

LAN - Compatibility:

10/100bT

LAN - Clamping Level:

50V

Coax - Shielded:

Yes

Coax - Insertion Loss:

< 0.5 dB

Coax - HD 1080 i/p Ready:

Yes

Coax - Frequency Range:

0 MHz - 2.2 GHz

Coax - Connections:

Female "F", Gold Plated

Coax - Clamping Level:

75V

Coax - Bidirectional:

Yes
