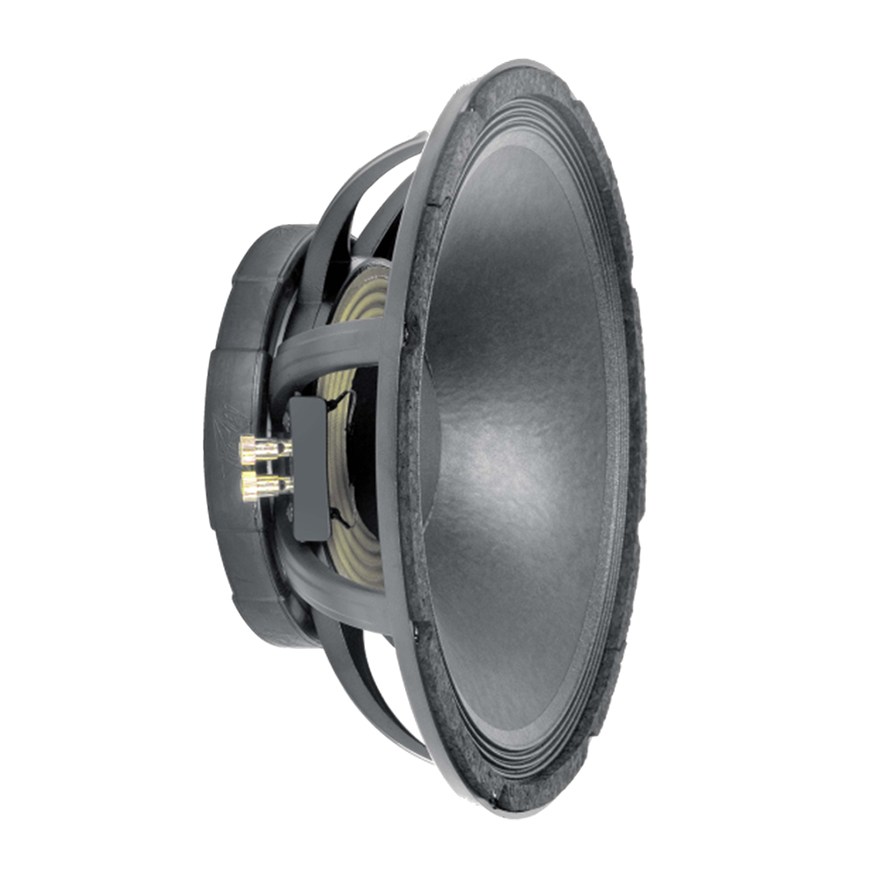

Peavey 00560000 1508-8HE BWX 15” Woofer Speaker Driver

Pack the power! The Peavey 15” Woofer Speaker Driver boasts a 40 Hz ~ 2 kHz frequency range, 100.3 dB sensitivity, and Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex® stiffener voice coil with Solderless diffusion welded OFHC copper leads. Add in the impregnated cellulose Kevlar® cone and it’s the full package.

Peavey

For nearly six decades, Peavey has blazed its own path toward musical perfection. Founded by Hartley Peavey in 1965 as a one-man shop, today Peavey Electronics Corporation is one of the largest makers and suppliers of musical instruments, amplifiers and professional audio systems in the world—distributing more than 2,000 products to more than 130 countries.

There are no support documents available for this product at this time.

Impedance:	8 Ohms
Power Capacity:	2000 W Peak 1000 W Program 500 W Continuous
Sensitivity:	100.3 dB / 1 W 1 m
Usable Frequency Range:	40 Hz ~ 2 kHz
Cone:	Kevlar® impregnated cellulose
Voice Coil Diameter:	4.0" / 100 mm
Voice Coil Materials:	Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex® stiffener Solderless diffusion welded OFHC copper leads
Net Weight:	17 lbs. / 7.7 kg
Znom:	8 ohms
REVC:	5.32 ohms
Sd:	0.084 sq. meters
BL:	16.04 T/M
Fo:	51.2 Hz
Vas:	182.4 Liters
Cms:	182.0 uM/N
Mms:	52.90 gm
QMS:	10.60
Qes:	0.352
Qts:	0.341
Le:	0.34 mH
SPL:	100.3 1W 1m
No:	6.70%
Vd:	19.5 cu. in. / 319 ml
Pmax:	1000 Watts pgm.
Disp:	197 cu. in. / 3229 ml
Xmax:	1.9 mm
Size:	15"
Packed Weight:	18.08 lb (8.2 kg)
Dimensions (L x W  x H):	18.307" (46.5 cm) x 17.52" (44.5 cmm) x 7.087" (18 cm)
