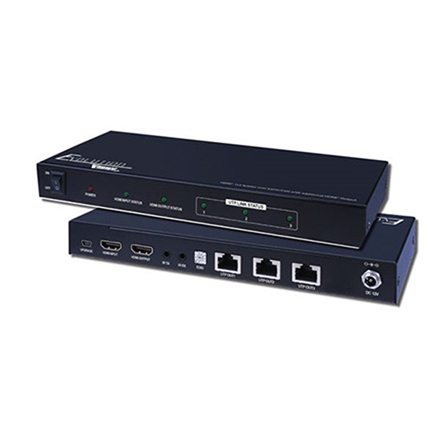

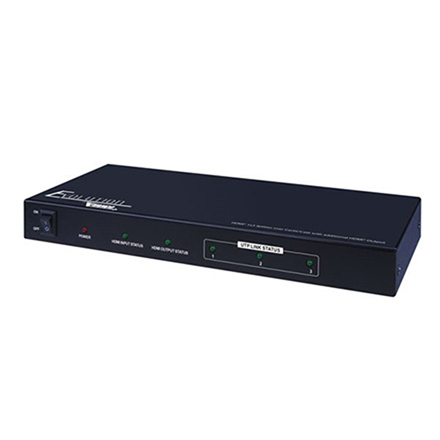

VANCO® EVSP1013 Evolution™ 1x3 HDMI Output Splitter over Cat5e/Cat6 Cable w/ Additional HDMI Output (165ft/50m)

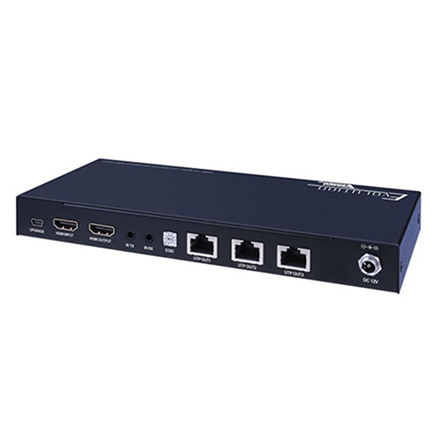

The Evolution EVSP1013 is a HDMI splitter that allows for (1) HDMI input to be split and sent to (4) different displays. The 3-UTP (RJ45) output ports can connect to the EVRX2006 PoE receiver (sold separately) over Cat5e/6 cable to transmit 1080p60 video with audio and control up to 50m. The single HDMI output can be used for a local display or cascaded into another splitter for an even larger distribution system.

IR & EDID Management

The Evolution Output HDMI Splitter features 20k - 60K wideband bi-direction IR communication and dynamic or manual EDID management. The user can manually select the best compatible EDID or automatically blend EDID of 4 connected HDMI sinks. It also provides power over the Cat5e/6 so that the EVRX2006 do not require a power supply.

Expandable High Resolution Compatibility

The EVSP1013 HDMI Splitter supports all 3D signal formats, and multiple audio formats including Dolby True HD, DTS-master, etc. Additionally, it is HDCP 2.0 compatible, and features an additional HDMI output which can be used for a local display or to cascade to another splitter for a larger distribution system.

Vanco® – Performance, Quality, Reliability

Vanco International, a leader in AV Distribution, is a primary developer and manufacturer with more than 50 years of experience in the Electronics Accessories Industry. With years of experience, Vanco designs and sources electronic accessory products that address ever emerging new markets. Vanco is committed to providing leading edge electronic accessories that advance connectivity and embrace the digital information evolution.

Products that Perform

Vanco International delivers products of the highest quality and reliability that are designed with AV integrators in mind. Vanco’s detailed quality inspection procedures insure that rigorous specifications are achieved. All Active HDMI® Products and Cables are 100% QC Tested in the United States.
