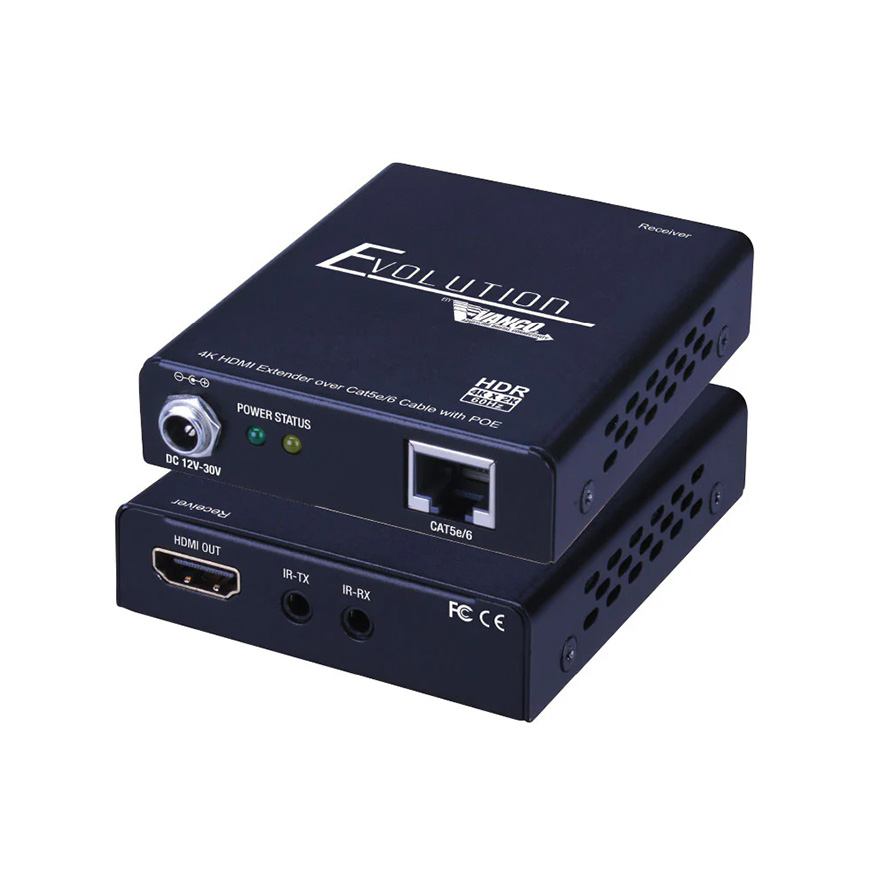

Vanco® EV4K2006 Evolution 4K HDMI Extender

Allow HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable with the Vanco® Evolution 4K HDMI Extender! It works with HDMI and HDCP compliant devices, features PoE technology, a wide-band bi-directional IR system, as well as EDID and EQ Management for plug-and-play installation. It supports DTS-HD and Dolby TrueHD high bit rate audio all contained within a slim, compact design that fits virtually any setting.

Features

This device extends 4K@60Hz, 4:4:4 Chroma up to 164ft/50m and 4K@30Hz, 4:4:4 Chroma and HDR up to 130ft/40m over a single Cat5e/6 cable. It includes wide-band IR signals from 20KHz to 60KHz. HDR10 compatible, HDCP2.2 compliant, and presenting pure uncompressed 7.1 channel digital audio makes this extender a must have!

Vanco® – Performance, Quality, Reliability

Vanco International, a leader in AV Distribution, is a primary developer and manufacturer with more than 50 years of experience in the Electronics Accessories Industry. With years of experience, Vanco designs and sources electronic accessory products that address ever emerging new markets. Vanco is committed to providing leading edge electronic accessories that advance connectivity and embrace the digital information evolution.

Technical Specs

HDMI Compliance: HDMI Deep Color 30/36/48 bit color depth, Full 3D
HDCP Compliance: Yes
Video Bandwidth: 594 MHz
Video Support: 480i/480p/720p/1080i/1080p/4Kx2K @60
Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio
Input TMDS Signal: 1.2 Volts (peak to peak)
Input DDC Signal: 5 Volts (peak to peak, TTL)
ESD Protection: (1) Human body model +/- 6kV (air-gap discharge) & (contact discharge) (2) Core chipset - +/-8KV
PCB Stack-up: 4 layer board (impedance control - differential 100, single 50
IR Pass-Through: Full-duplex bi-directional

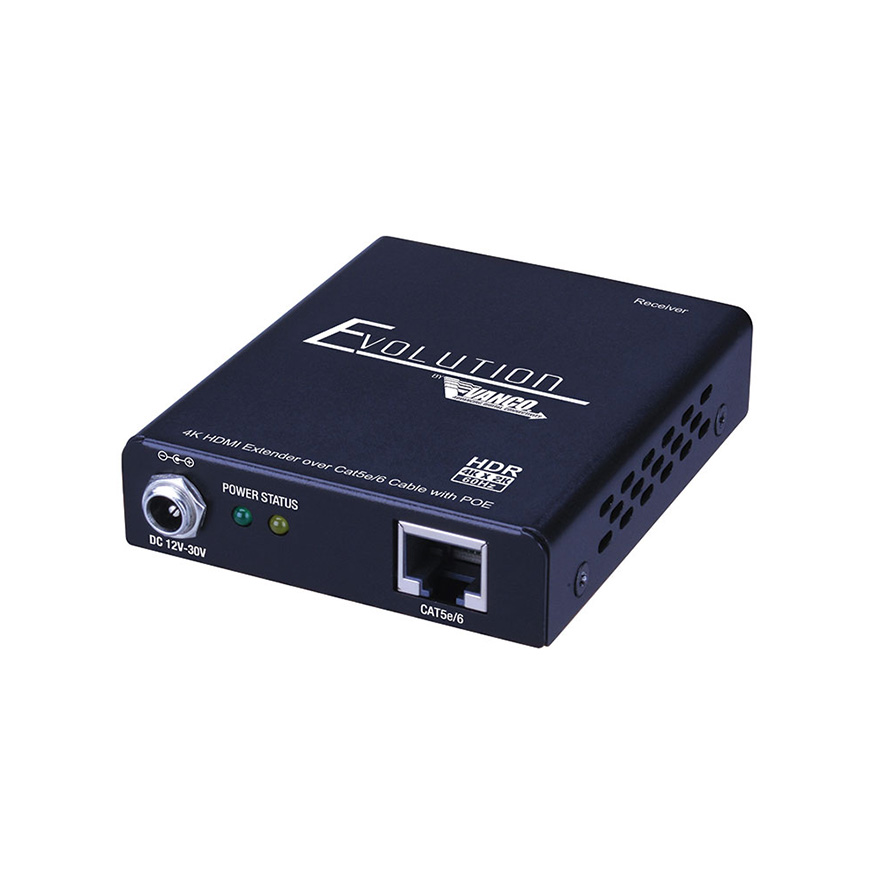

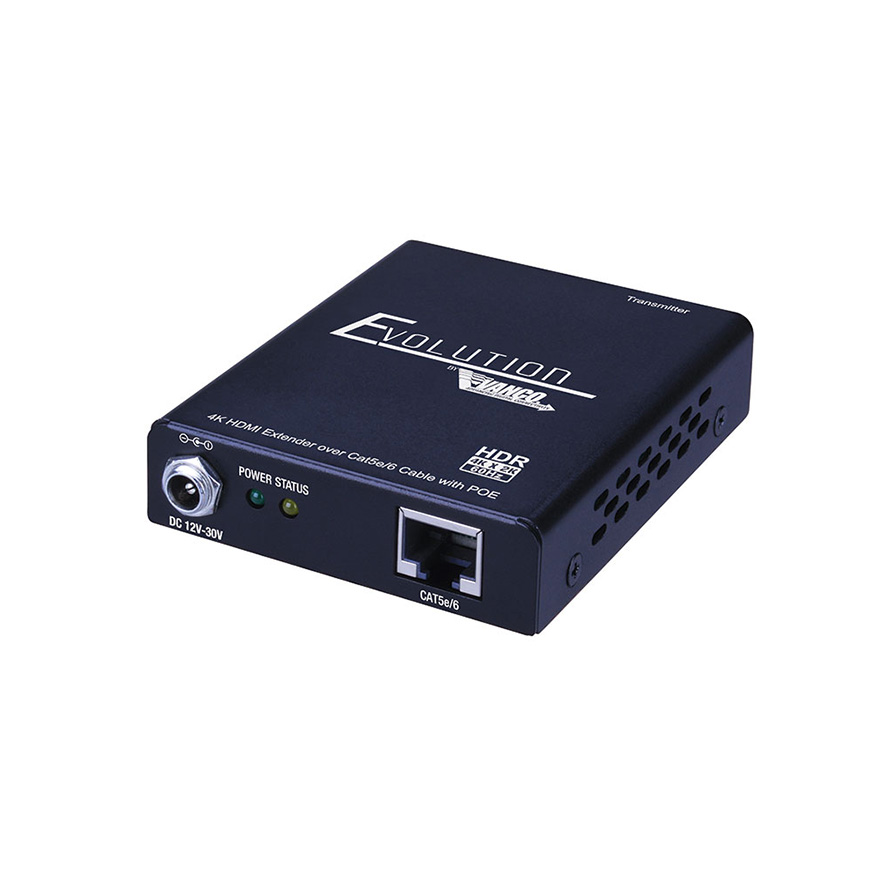

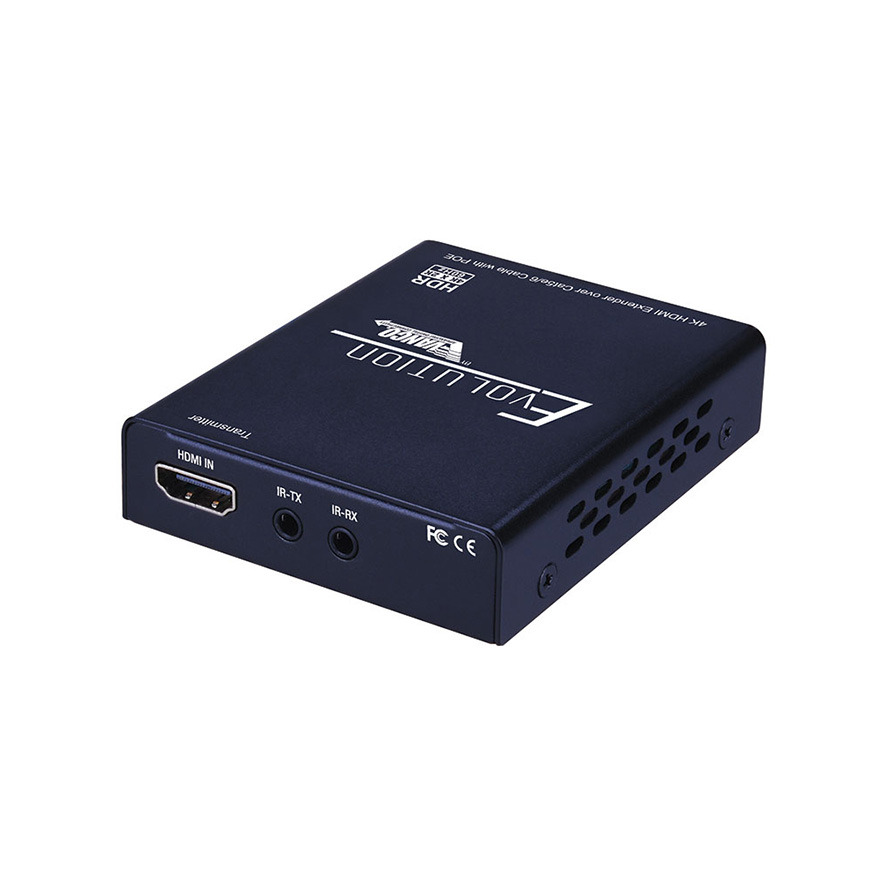

Input: (TX) 1xHDMI; (RX) 1xRJ45 + 2x3.5mm

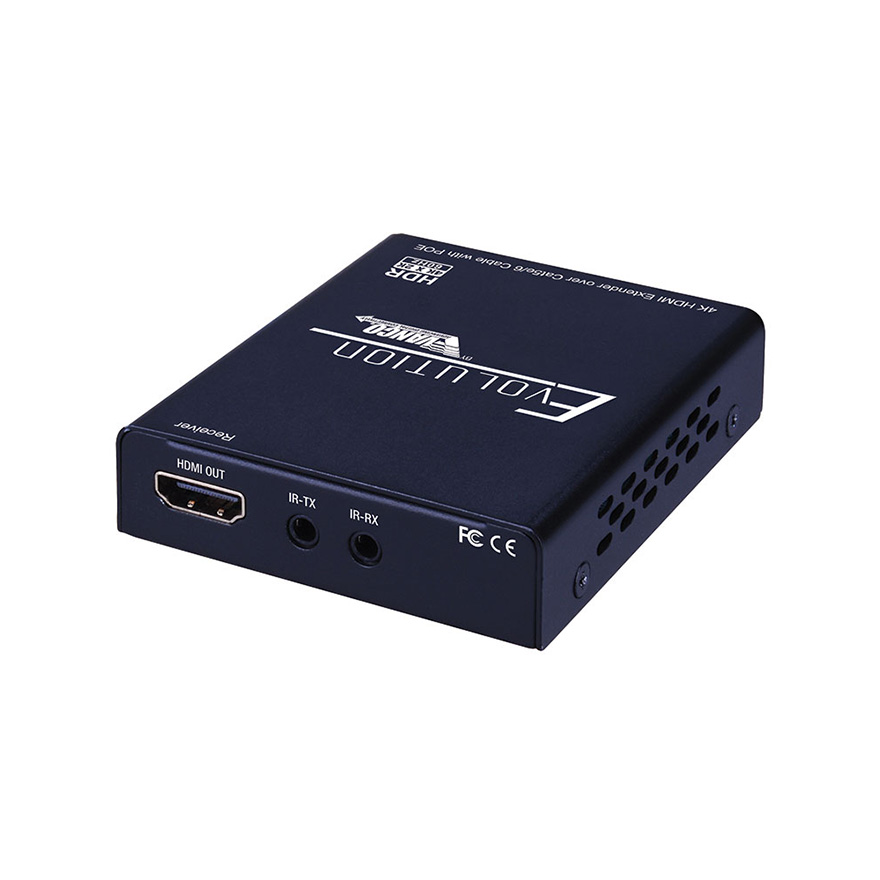

Output: (TX) 1xRJ45 + 2x3.5mm; (RX) 1xHDMI
HDMI Source Control: Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders or via CEC integrated
HDMI Connector: Type A 19 pin female
RJ-45 Connector: WE/SS 8P8C
LED Indicators: Video lock yellow, Power, green
3.5 mm Connector: (TX and RX) IR Receiver/ IR blaster

Mechanical Specs

Housing: Metal enclosure
Power Supply: (1) 12V 2A
Power Consumption: 3.5 Watts TX, 2.5 Watts RX
Operation Temperature: 0 ~ 45 degrees Celsius
Storage Temperature: -20 ~ 85 degrees Celsius
Relative Humidity: 20-90% RH (no condensation)

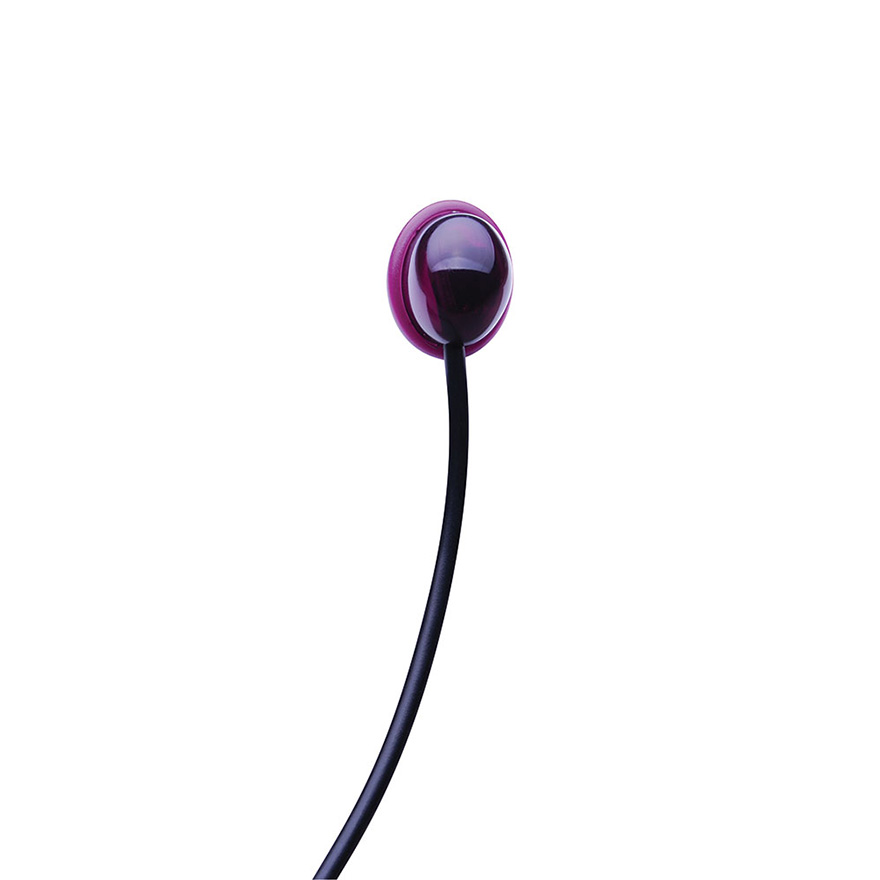

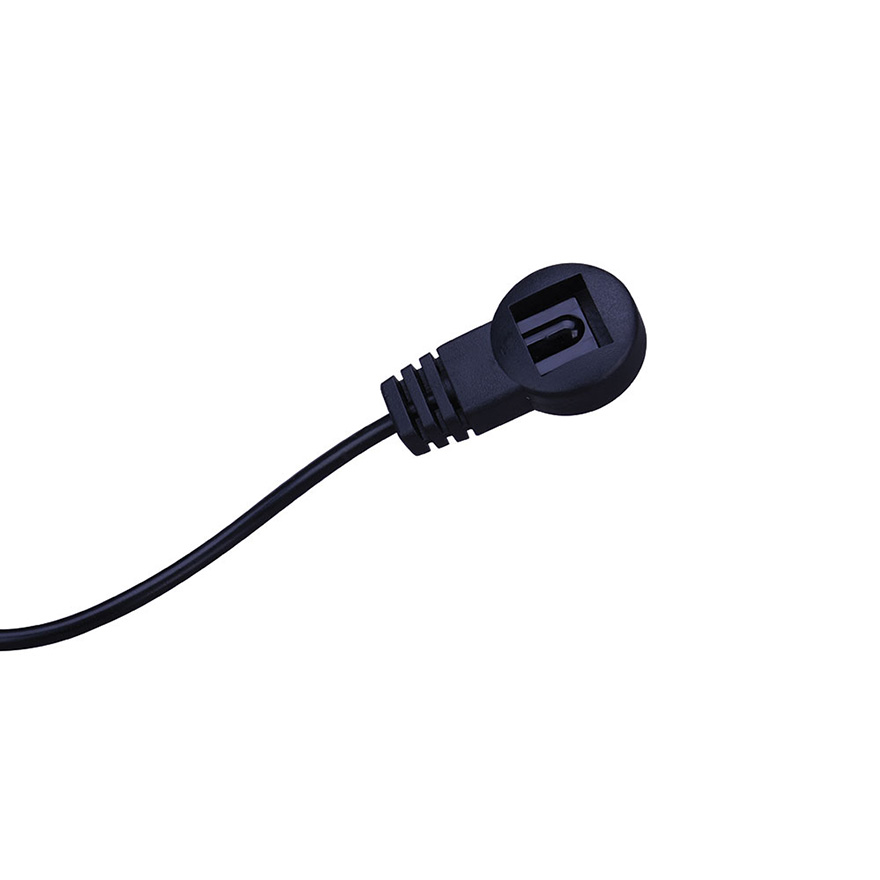

Package Contents: EV4K2006 (TX & RX), (2) IR Blasters (TX), (2) IR Receivers (RX), (1) DC 12V in line power supply,Product Manual
