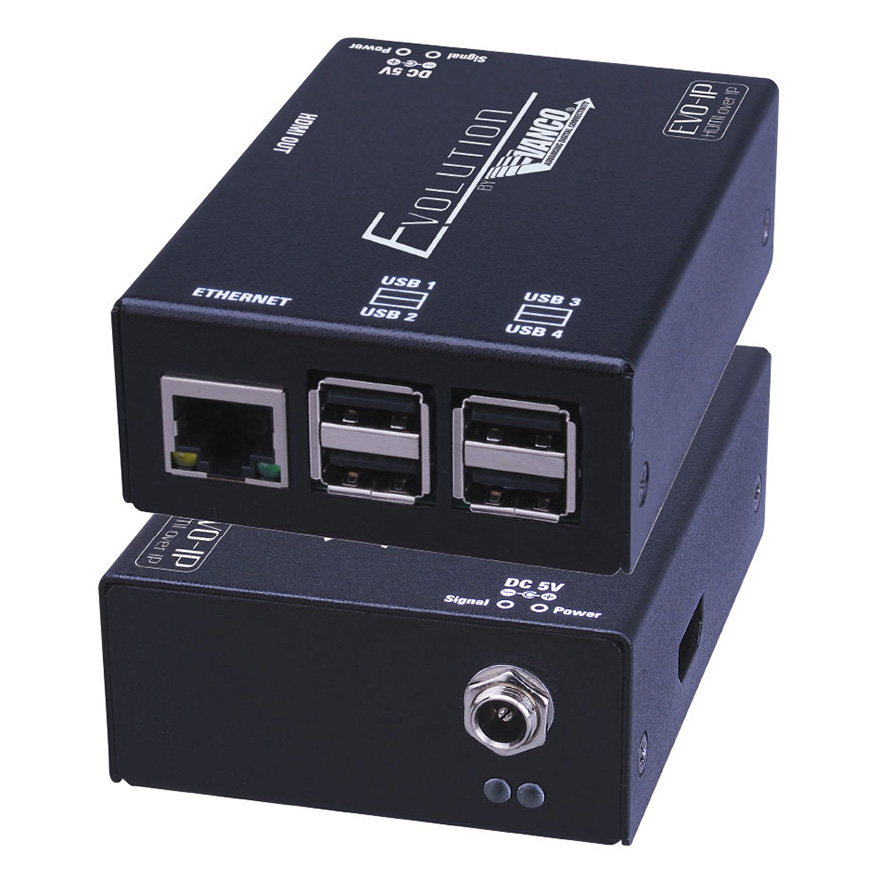

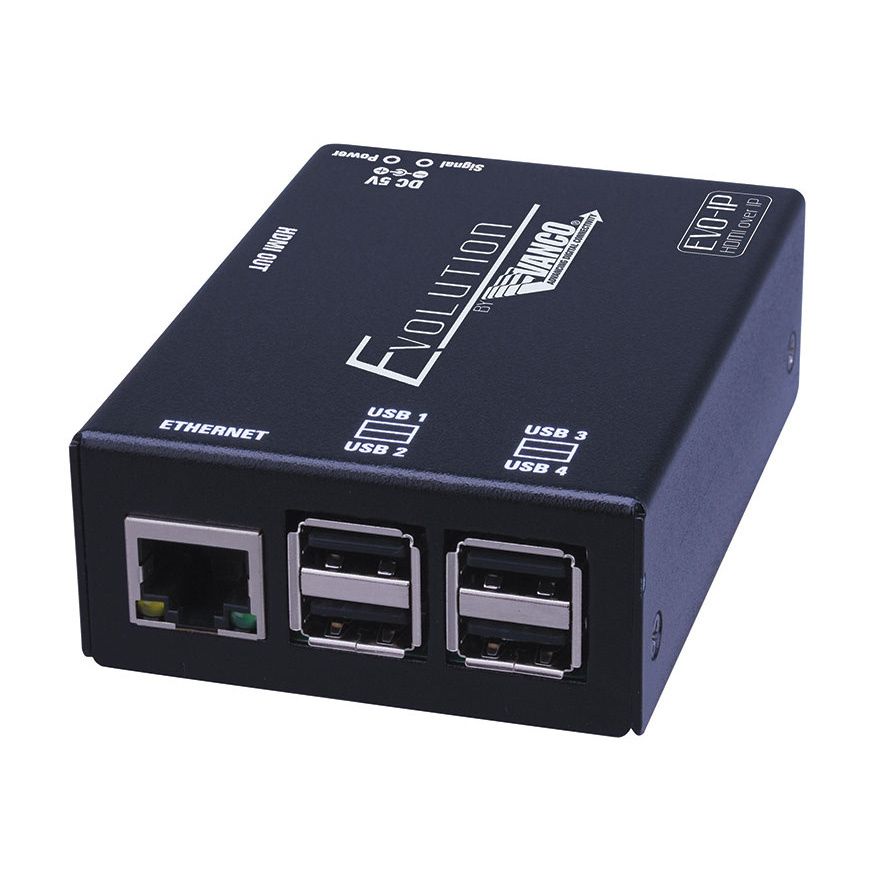

VAN1250 - Vanco® EVOIPCTL1 EVO-IP Control Box
Item: VAN1250 | Model: EVOIPCTL1

Brand: VANCO    Last Ordered:

  • Ships Free with Qualifying Order
  • Volume Discounts Available
  • Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555


Vanco® EVOIPCTL1 EVO-IP Control Box

Total control! The Vanco® EVO-IP Control Box comes complete with EDID preset learning. It connects to the cloud to schedule events or troubleshoot situations remotely, and is compatible with Alexa enabled products.

How It Works

This Control Box sets up through the GUI without needing a computer on site. The GUI detects new devices in the system right away. Equipped with an HDMI output for easy access to network connections and USB ports for future use, it also upscales to 4K@30Hz or downscales to 720p.


Great for digital signage, the EVO-IP Control Box includes an OSD mode to display text, pictures, or logos on the screen. Video wall mode supports configurations up to 25 displays.

Vanco® – Performance, Quality, Reliability

Vanco International, a leader in AV Distribution, is a primary developer and manufacturer with more than 50 years of experience in the Electronics Accessories Industry. With years of experience, Vanco designs and sources electronic accessory products that address ever emerging new markets. Vanco is committed to providing leading edge electronic accessories that advance connectivity and embrace the digital information evolution.

Technical Specs

HDMI Compliance: HDMI
HDCP Compliance: Yes
Video Resolution: 4K@60Hz, 4:4:4; 4K@60Hz, 4:2:0 HDR10;4K@30Hz, 4:4:4 HDR10; 4K@30Hz, 4:2:2 HDR10 and Dolby Vision; 4K@24Hz, 4:4:4 HDR10 and Dolby


Latency:  2 frames (33ms) maximum
HDMI over UTP transmission: 1Ultra HD (4K@60) up to 330ft/100m over Cat6
Audio Support: Surround sound (up to 7.1ch) PCM, DTS, Dolby
Input TMDS Signal: 1.2 Volts [peak-to-peak]
Input DDC Signal: 5 Volts [peak-to-peak, TTL]
ESD Protection: Human body model — ±15kV [air-gap discharge] &±8kV [contact discharge]
IR Pass-Through: Full-duplex bi-directional
RS-232 Support: Yes
IR Remote Control: Dual Band: 20-60kHz
HDMI Connector: Type A [19-pin female]

Mechanical Specs - Transmitter and Receiver

Housing: Metal Enclosure
Dimensions: 5.5” W x 3.8” H x 1” D
Weight: 0.95 lbs.
Fixedness: Wall-mounting case with screws
Power Supply: 5V 2A DC
Power Consumption: 6 Watts TX; 5 Watts RX
Operation Temperature: 32° ~ 113°F
Storage Temperature: -4° ~ 140°F
Relative Humidity: 20-90% RH (no condensation)
