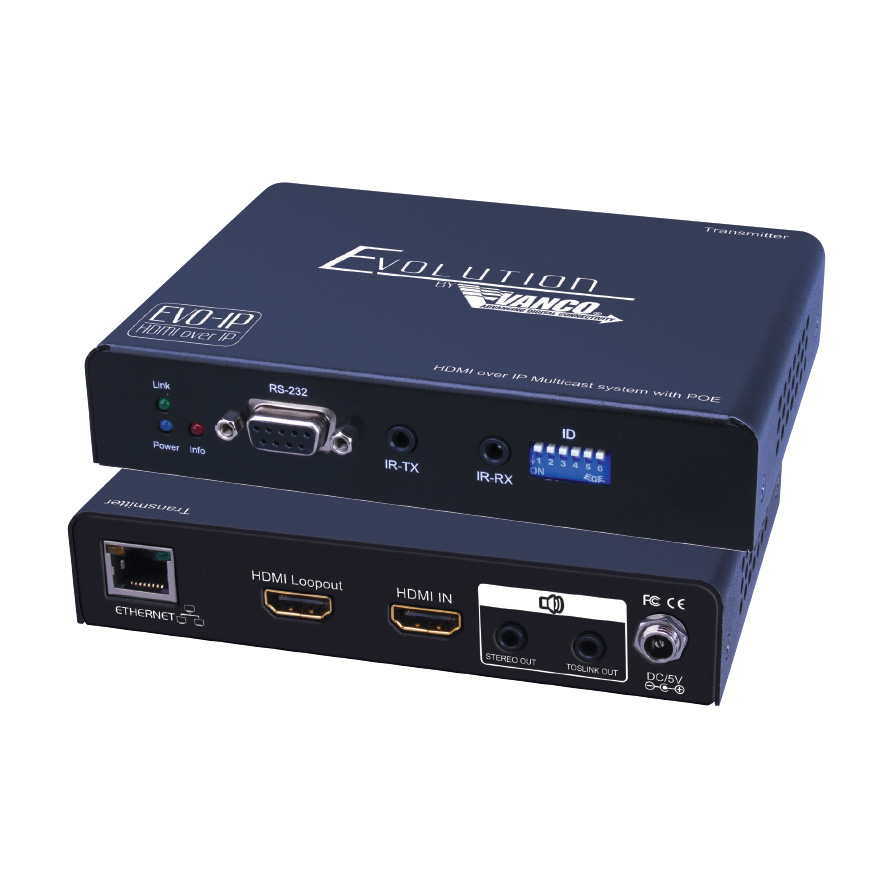

VAN1252 - Vanco® EVOIPTX1 EVO-IP Transmitter
Item: VAN1252 | Model: EVOIPTX1

Brand: VANCO    Last Ordered:

  • Ships Free with Qualifying Order
  • Volume Discounts Available
  • Same Day Shipping

Questions Email
Call Today
Call Today (800) 844-9555


Vanco® EVOIPTX1 EVO-IP Transmitter

Get the right transmission! This system supports 4K@60Hz, 4:4:4 chroma and can handle over 1000 transmitters and receivers. HDR10 and Dolby vision compatible, Dolby/DTS/PCM audio support, and HDCP 2.2/1.4, it is equipped.

How It Works

This Transmitter sets up through the GUI without needing a computer on site. The GUI detects new devices in the system right away. Equipped with an HDMI Loop-Out for cascading monitors, it also upscales to 4K@30Hz or downscales to 720p.


Great for digital signage, the EVO-IP Transmitter includes an OSD mode to display text, pictures, or logos on the screen. Video wall mode supports configurations up to 25 displays. Able to be controlled with Alexa enable products, this Transmitter also connects to the cloud to schedule events or troubleshoot a situation remotely.

Vanco® – Performance, Quality, Reliability

Vanco International, a leader in AV Distribution, is a primary developer and manufacturer with more than 50 years of experience in the Electronics Accessories Industry. With years of experience, Vanco designs and sources electronic accessory products that address ever emerging new markets. Vanco is committed to providing leading edge electronic accessories that advance connectivity and embrace the digital information evolution.

Technical Specs - Transmitter and Receiver

HDMI Compliance: HDMI
HDCP Compliance:  Yes
Video Resolution: 4K@60Hz, 4:4:4; 4K@60Hz, 4:2:0 HDR10;4K@30Hz, 4:4:4 HDR10; 4K@30Hz, 4:2:2 HDR10 and Dolby Vision; 4K@24Hz, 4:4:4 HDR10 and Dolby


Latency: 2 frames (33ms) maximum
HDMI over UTP Transmission (24-bit): 1Ultra HD (4K@60) up to 330ft/100m over Cat6
Audio Support: Surround sound (up to 7.1ch) PCM, DTS, Dolby
Input TMDS Signal: 1.2 Volts [peak-to-peak]
Input DDC Signal: 5 Volts [peak-to-peak, TTL]
ESD Protection: Human body model — ±15kV [air-gap discharge] &±8kV [contact discharge]
IR Pass Through: Full-duplex bi-directional
RS-232 Support: Yes
IR Remote Control: Dual Band: 20-60kHz
HDMI Connector: Type A [19-pin female]

Mechanical Specs - Transmitter and Receiver

Housing: Metal enclosure
Dimensions: 5.5” W x 3.8” H x 1” D
Weight: 0.95 lbs.
Fixedness: Wall-mounting case with screws
Power Supply: 5V 2A DC
Power Consumption: 6 Watts TX; 5Watts RX
Operation Temperature: 32° ~ 113°F
Storage Temperature: -4° ~ 140°F
Relative Humidity: 20-90% RH (no condensation)
