VER1600OB - Vertical Cable 161-102/BL Cat6 8-Conductor Cable, 550MHz (1000ft | Blue) **Open Box Item**
Item: VER1600OB | Model: 060-488/BL

Brand: Vertical Cable    Last Ordered:

  • Same Day Shipping


Questions Email
Call Today
Call Today (800) 844-9555

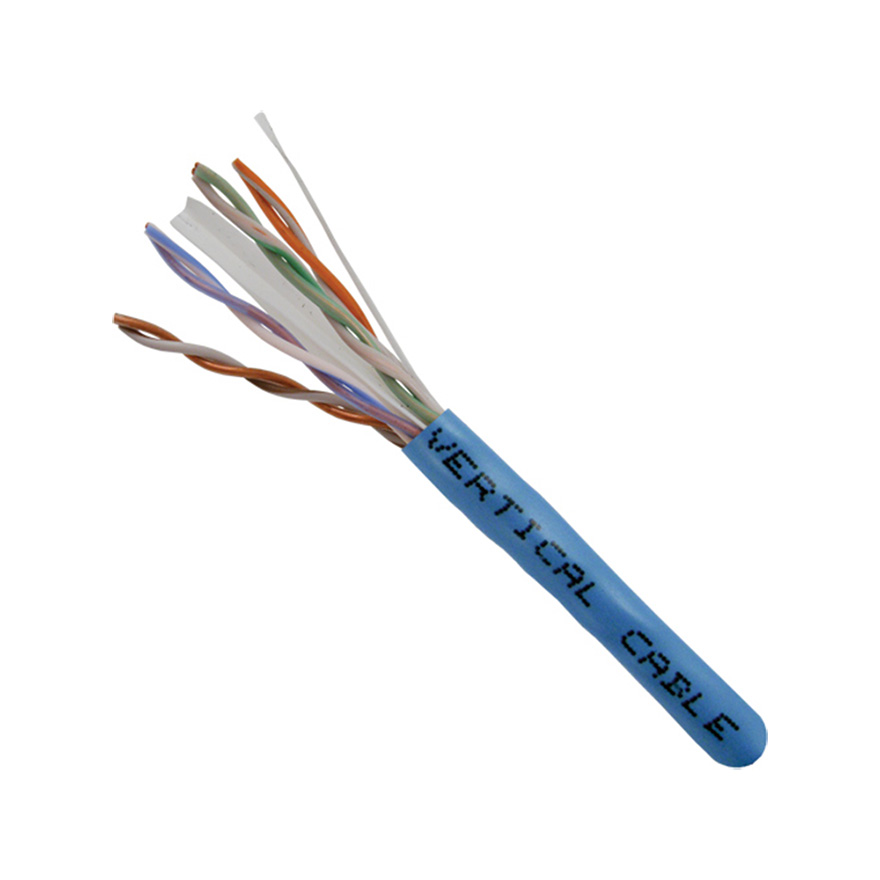

Vertical Cable 161-102/BL Cat6 8-Conductor Cable, 550MHz  (1000ft | Blue) **Open Box Item**

Deliver power with ease! The Vertical Cable 161-102/BL Cat6 550MHz 8-Conductor Cable is up for just about anything. From audio, video, or any type of data transfers, this cable is ready for the task.

Good to Excellent Condition

Our Open Box Items are like new and range from good to excellent condition. Many of the products we sell as Open Box have never actually been removed from the carton, only returned by the purchaser for various reasons. Other times they were put on display or were needed for photos.

What to expect when purchasing an Open Box item:

  • All parts included
  • Original box and additional contents (manuals, extra hardware, accessories, etc.) included when possible
  • Minimal use
  • No major blemishes
  • No significant wear and tear to product
  • Product in original packaging when available
  • Original packaging may be replaced or out of shape from shipping
  • 90 day return policy

Complete Clarity

Guaranteed to last, the Vertical Cable 161-102/BL is designed to ensure signal integrity. It is specifically crafted to provide unrivaled audio and video clarity.

Effortless Install

This cable has an easily strippable jacket and sequential distance offering you an effortless install.

There are no support documents available for this product at this time.

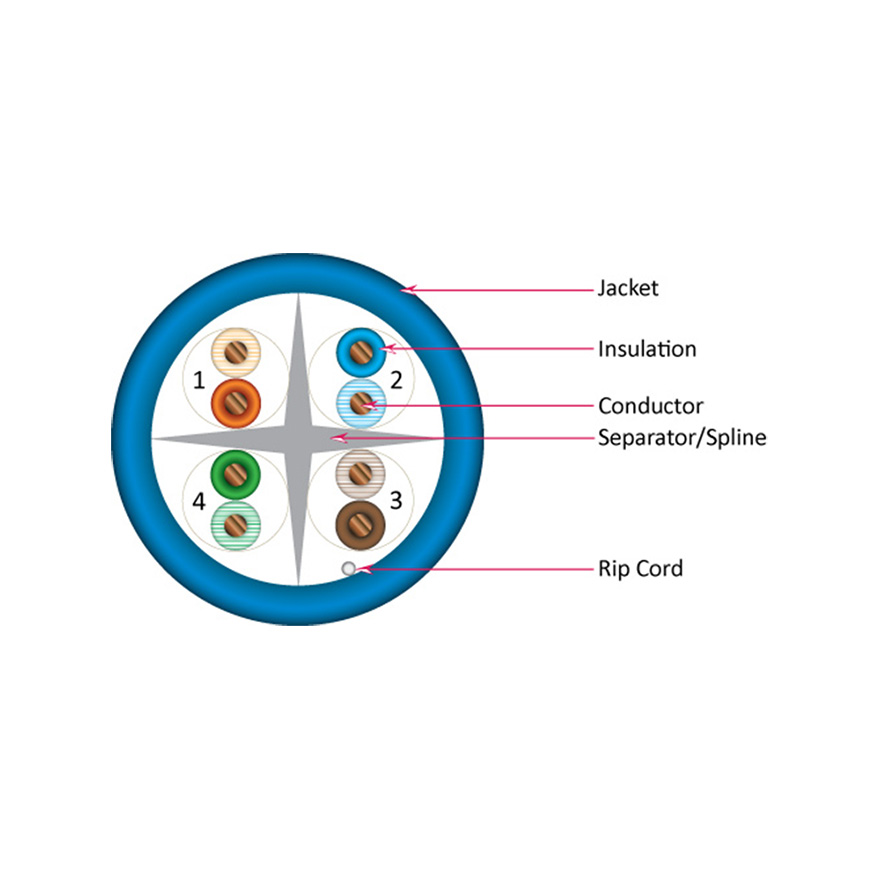

Technical Data
Product Standard Certification CMR
NVP 67%
Conductor Solid Bare Copper
Size 23AWG
Insulation PE
Separator Yes
Jacket PVC
Outer Diameter 6.10 mm (±0.05mm)
Rip Cord Yes
Color of Pairs
Pair1 Blue, White-Blue
Pair 2 Orange, White-Orange
Pair 3 Green, White-Green
Pair 4 Brown, White-Brown
Mechanical Properties
Bending Radius 4XOD (without load)
Operating Temperature -20ºC~75ºC
Marking on Jacket VERITCAL ETL VERIFIED CAT6 TO ANSI/TIA 568-C.2 ETL CMR 23 AWG 4PR 75C UTP c(ETL)us FT 4 55MHZ RoHS XXXXFT (SEQUENTIAL FOOD MARKERS ON JACKET)
DC Resistance Max 9.38Ω / 100m at 20ºC
Resistance Unbalance Max 5% at 20ºC
Mutual Capacitance Max 5.6 nf / 100m at 1kHz
Cap. Unbalance to Ground Max 330 pf / 100m at 1 kHZ
Characteristic Impedance (100 ± 15) Ω at 1 ~ 100 MHz
Nominal Velocity of Propagation 67%
Propagation Delay ≤ 535 ns / 100m
Delay Skew ≤ 45ns / 100m
Frequency (Mhz)
Condition: Open Box
